| 產品參數 |
參數描述 |

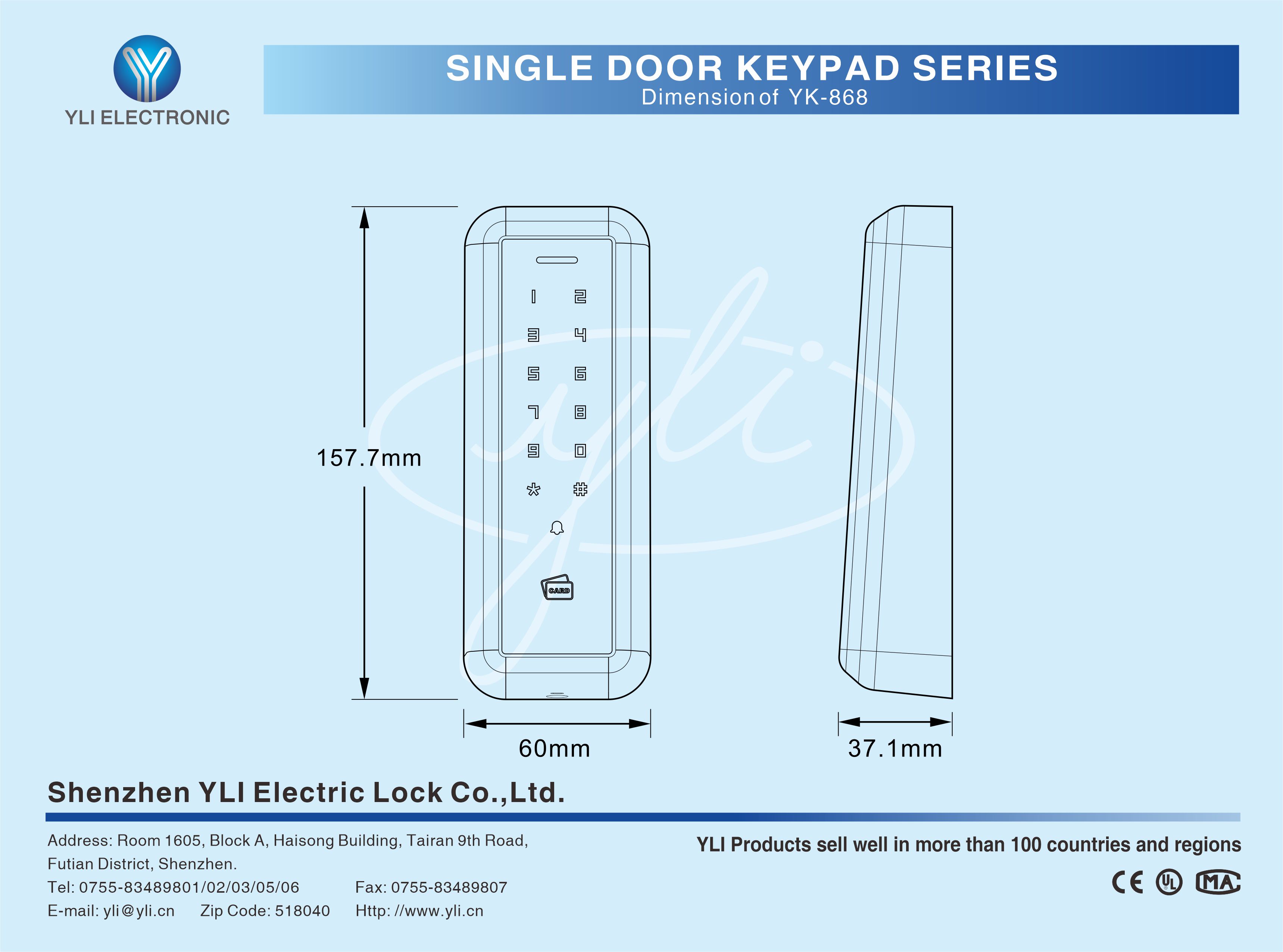

| Dimensions |
157.7x60x37.1 mm |
| Operating Voltage |
12VDC |
| Lock Output Load |
Max.1.5A |
| Card Capacity |
2000 |
| PIN Capacity |
500 |
| ldle Current |
50mA |
| Waterproof Level |
IP66 |
| Card Type |
ID card or IC card |
| Door Open Time |
0-99 seconds . |
| Card Reading Distance |
Max.2-23/64" |
| Product Weight |
1. ,41|b |
| Enclosure Material |
Zinc Alloy |
| Operating Temperature |
-22°F- 140°F |
| Operating Humidity |
1 0%-90%RH |
| Wiring Connections |
Electric Lock, Exit Button, Bell |
Full programming from the keypad.
Supports Card, PIN, Card + PIN, Card or PIN.
Can be used as standalone keypad.
Adjustable door open time.
Very low power consumption.
Backlit touch keys.
Lock output current short circuit protection.，
With bell function, supports external bell.
Audible keystroke echo.
Red, blue, white, yellow and green LED indicators display the working status.
Wiegand 26 input for connection to external reader or Wiegand 26 output
for connection to a controller.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
