Connecting the working voltage DC 12-24Vthe manual callpoint is in the normal working state while the green ledflashes; When press the plastic panel, the red led stay on ,it is in the alarm state.The switch is NO in the normal stateand it is NC in the alarm state.

No Video User?manual Advisory Like it(0)

Keywords：

Prev:Triple Pole Resettable Call Point with LED(green)CPK-863G-3(LED)

Next:Waterproof Resettable Call PointCPK-865G-WP

Share to：

Technical Parameter

Advantage

Installation Diagram

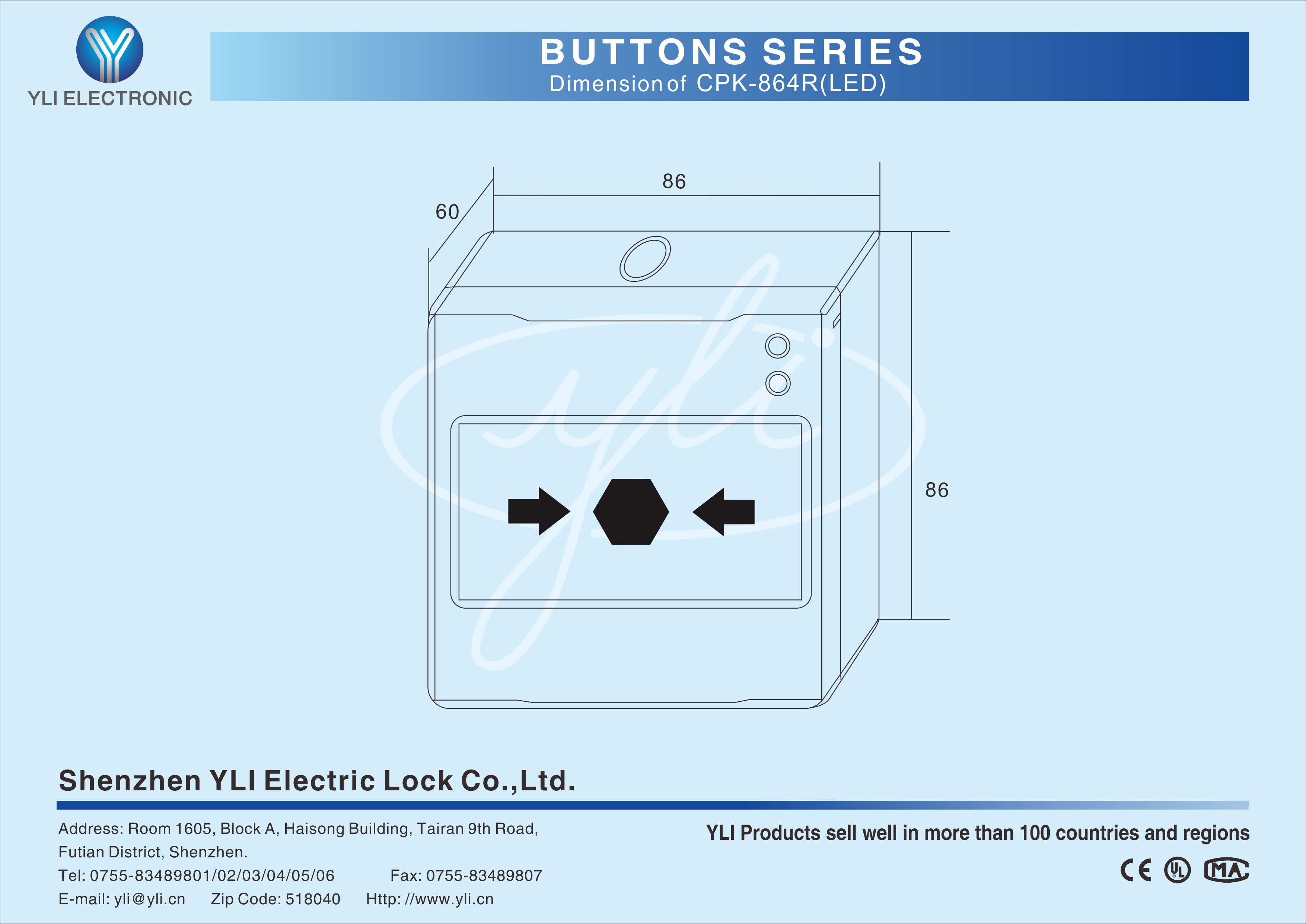

Dimension Diagram

Quality Guarantee

Statement

Packing

Accessory

Product Parameter	Parameter Description
Dimensions	86Lx86Wx50H(mm)
Rated voltage	12-24VDC
Standby current	≤330uA (DC24V)
Alarm Current	≤35mA (DC24V)
Power Indicator	Green LED
Alarm Indicator	Red LED
NO/NC	Optional
Working temperature	-10°C~+55°Cmax 95%
Material Selection	ABS, Sandblast Finished
Weight	0.2kg

Use the Fireproof Material, Accord with the Safe Request
Sandblast Panel with Elegant Style
Different colours options for different occasions

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN)	50
Packing Size(LWH)(cm)	54.52030.5
Gross Weight(KG)	10.0
