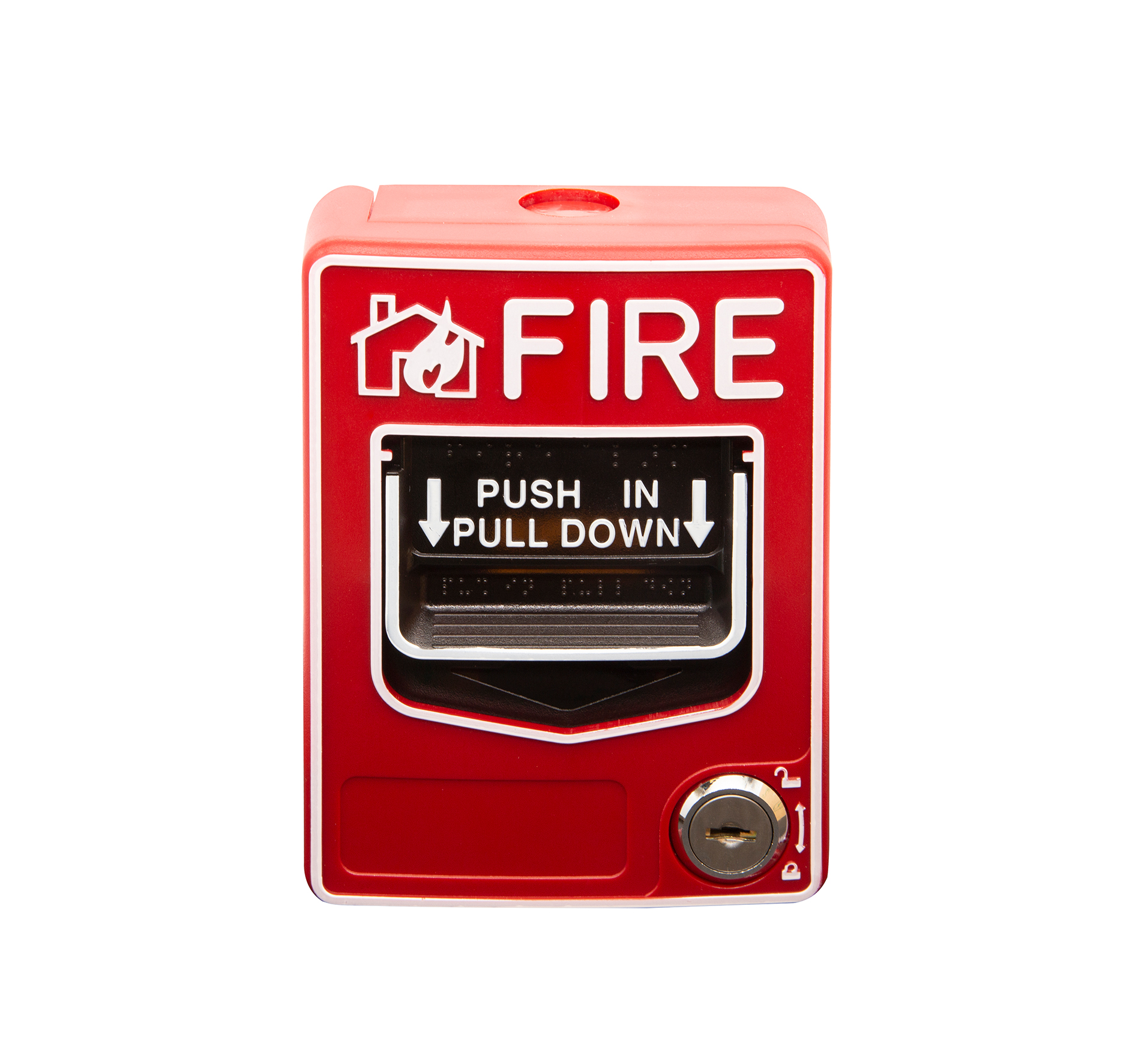

This conventional manual call point designed forconventional fire alarm system for reporting.fire oremergency condition by its PUSHIN/PULL DOWNhandle latches.One 470 ohm resistor is used on the PCBboard between Zone+ and Zone- when the switch insideis closed.So this conventional manual call point is onlyused with conventional fire alarm control panel,it isforbidden to be used to other system.

No Video User?manual Advisory Like it(0)

Keywords：

Prev:Waterproof Resettable Call PointCPK-865G-WP

Next：Nothing

Share to：

Technical Parameter

Advantage

Installation Diagram

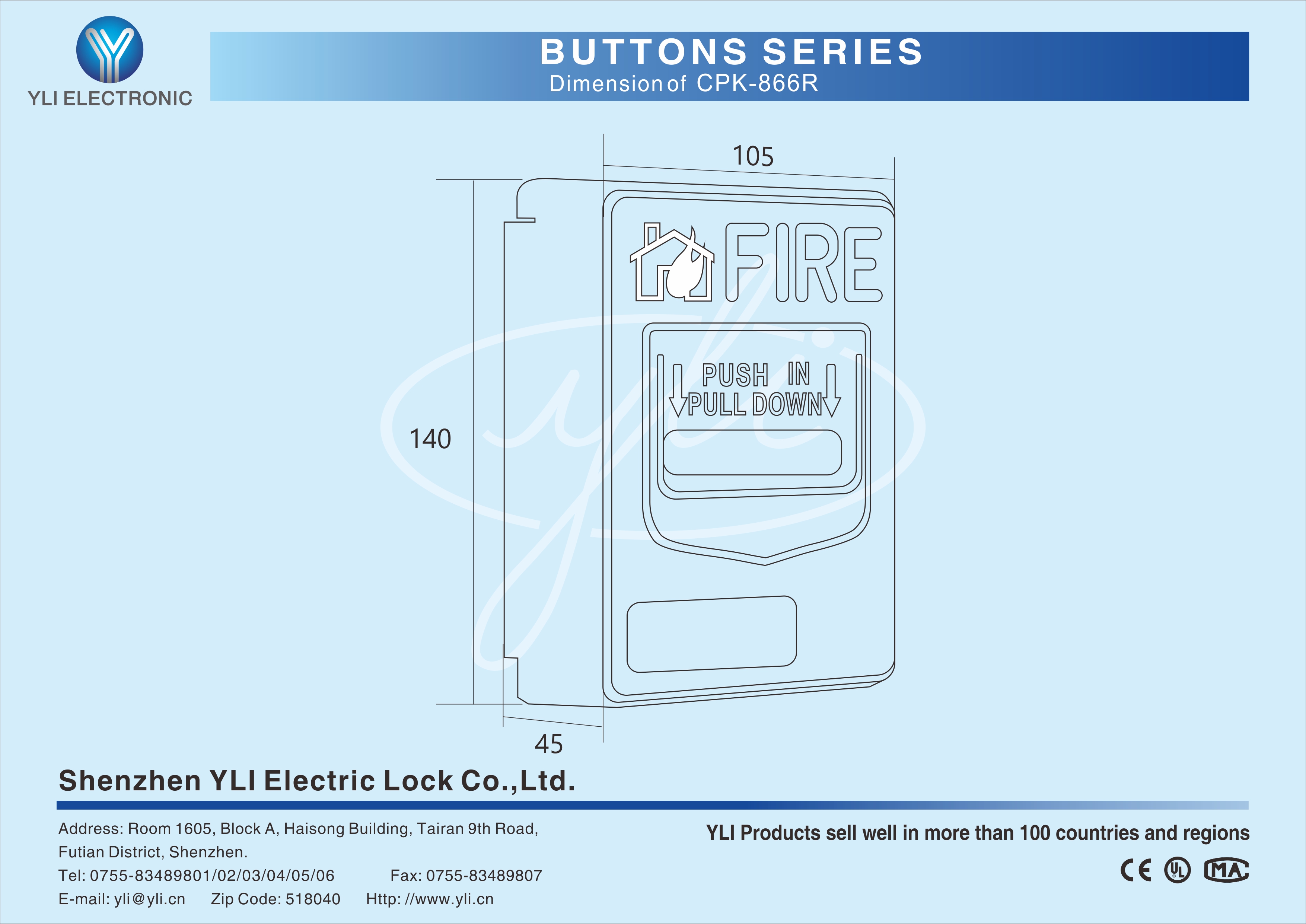

Dimension Diagram

Quality Guarantee

Statement

Packing

Accessory

Product Parameter	Parameter Description
Dimensions	140Lx105Wx45H(mm)
Alarm Current	45mA @ 24VDC
Operating Humidity Range	10% to 93% Relative Humidity , Non-condensing
Operating Temperature Range	-10°C-50°C ( 14° F to 122° F)
Material	ABS Fireproof material
Weight	0.22kg

Use the Fireproof Material, Accord with the Safe Request
Sandblast Panel with Elegant Style
Different colours options for different occasions

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN)	50
Packing Size(LWH)(cm)	54.52030.5
Gross Weight(KG)	10.0

coming soon

Comparison of similar products

Model

Name


Video

PDF

Parameter

CPK-860G-1

Single Pole Emergency Call Point(green)

View

Details

CPK-860R-1

Single Pole Emergency Call Point(red)

View

Details

CPK-860Y-1

Single Pole Emergency Call Point(yellow)

View

Details

CPK-860W-1

Single Pole Emergency Call Point(White)

View

Details

CPK-860G-2

Double Pole Emergency Call Point(green)

View

Details
