| Product Parameter |
Parameter Description |
| Feature |
Mortise mount |
| Dimensions |

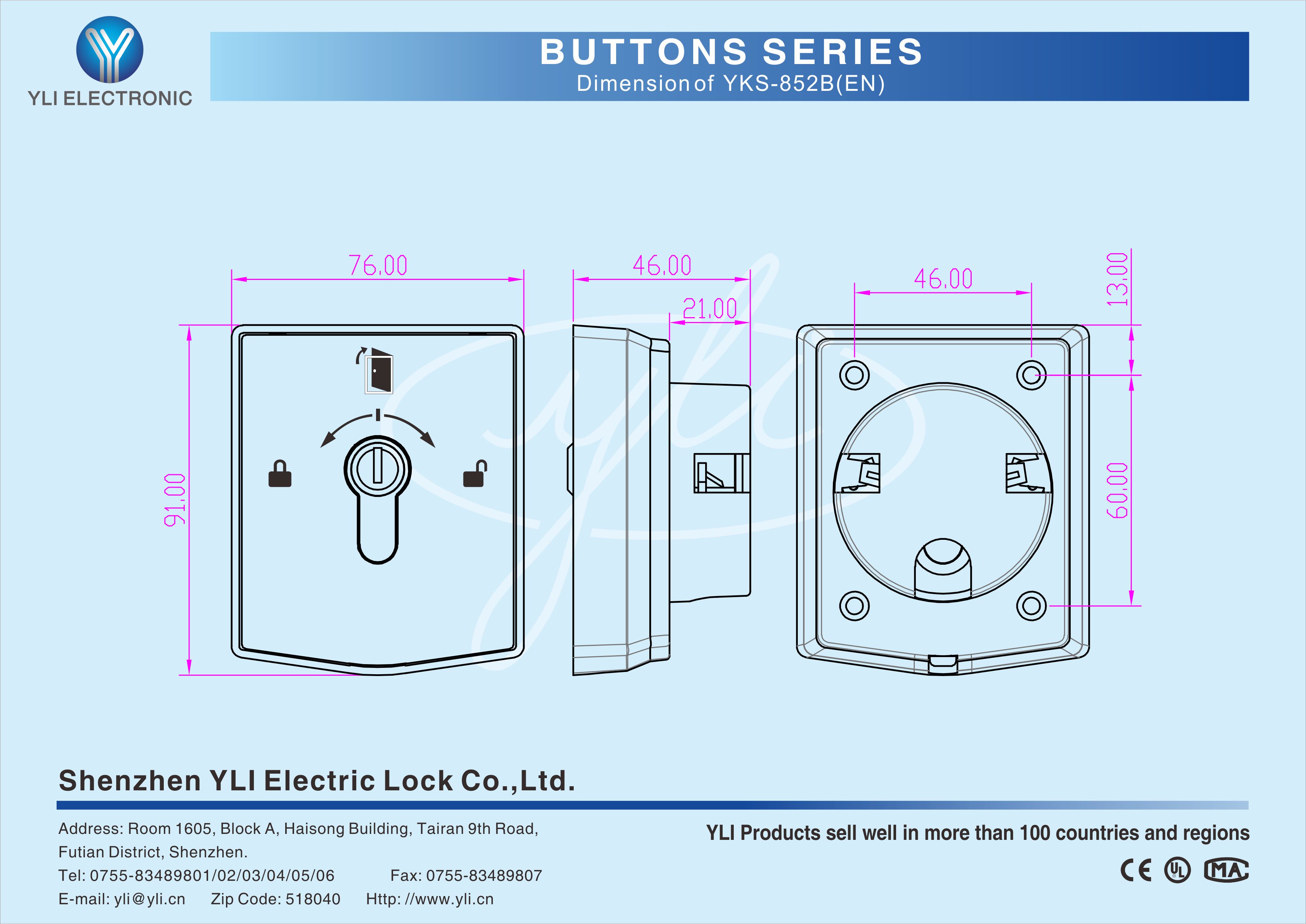

76Lx91Wx46H(mm) |
| Struture |
Zinc alloy with black paint treatment , brass key |
| Contact Rating |
5A/125VAC (max) |
| Output contact |
Double pole: NO/NC/COM |
| Type |
Self-reset |
| Mechanical life |
100,000 tests |
| Feature |
Mortise mount |
| Operating temp |
10～+55(14-131F) |
| Operating humidity |
0-95% (non- condensing) |
| Waterproof Level |
IP-65 |
| Weight |
0.4kg |
All metal structure, safety.
Anti-break design, durable.
100,000 tested mechanical life.
Suitable for access controls,fireproof door, alarm.
Official authorized product of access control project.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
50 |
| Packing Size(L*W*H)(cm) |
52*22*36 |
| Gross Weight(KG) |
20 |
