| Product Parameter |
Parameter Description |

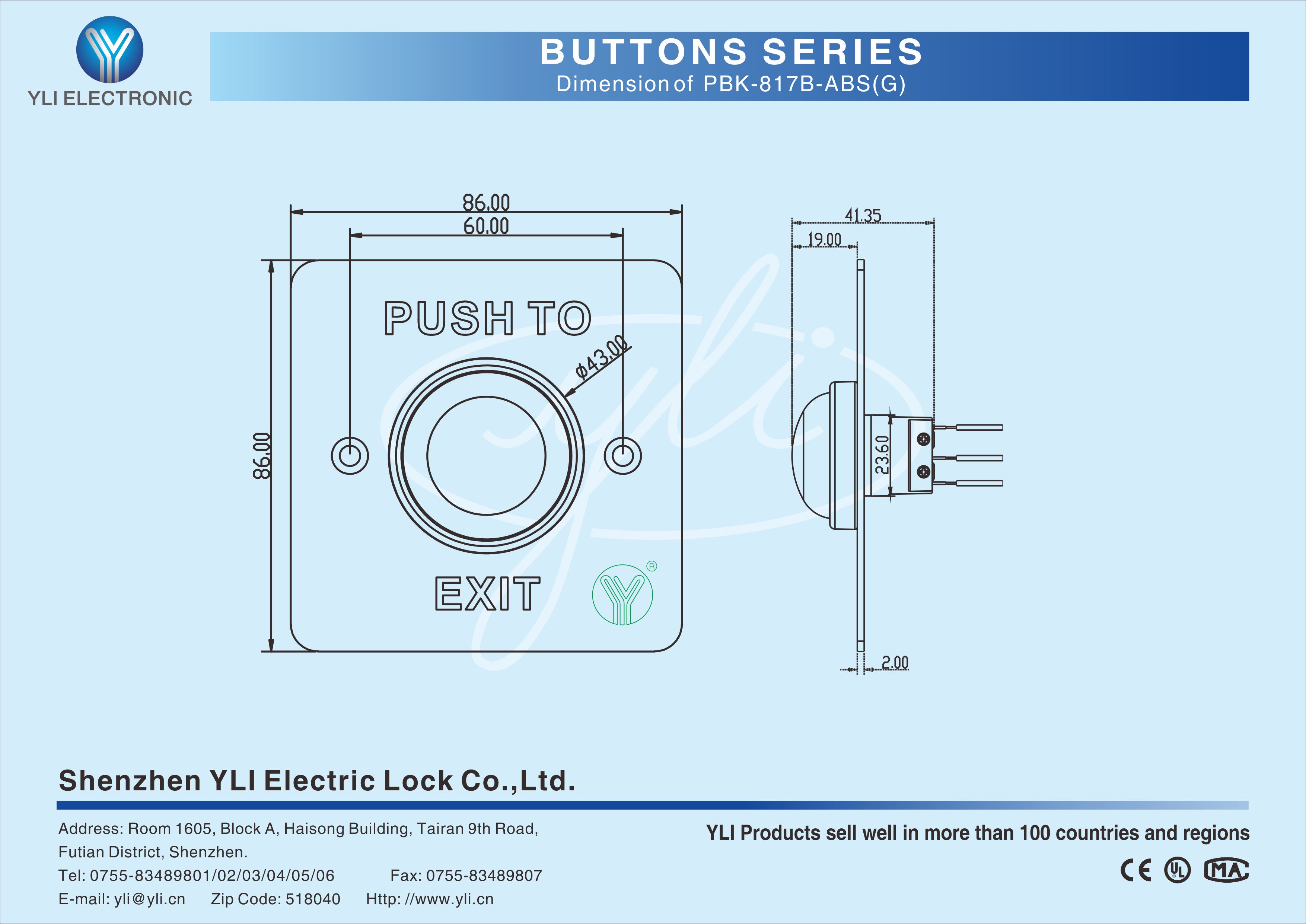

| Dimensions |
86Lx86Wx41H(mm) |
| Standard structure |
304 stainless steel panel with wire drawing finish,Big ABS Button |
| Current rating |
30VDC 1A |
| Output contact |
NO(Green),NC(Yellow),COM(White) |
| Mechanical life |
1000,000 tested |
| Suitable for door |
Hollow doors |
| Operating temp |
-20～+60℃ |
| Operating humidity |
0-95% (RH) |
| Weight |
0.2kg |
| Certification |
CE-EMC CE-LVD RoHS |
304 stainless steel panel
1000,000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.
Used in public authorities, banks, large、small and medium-sized enterprises
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
