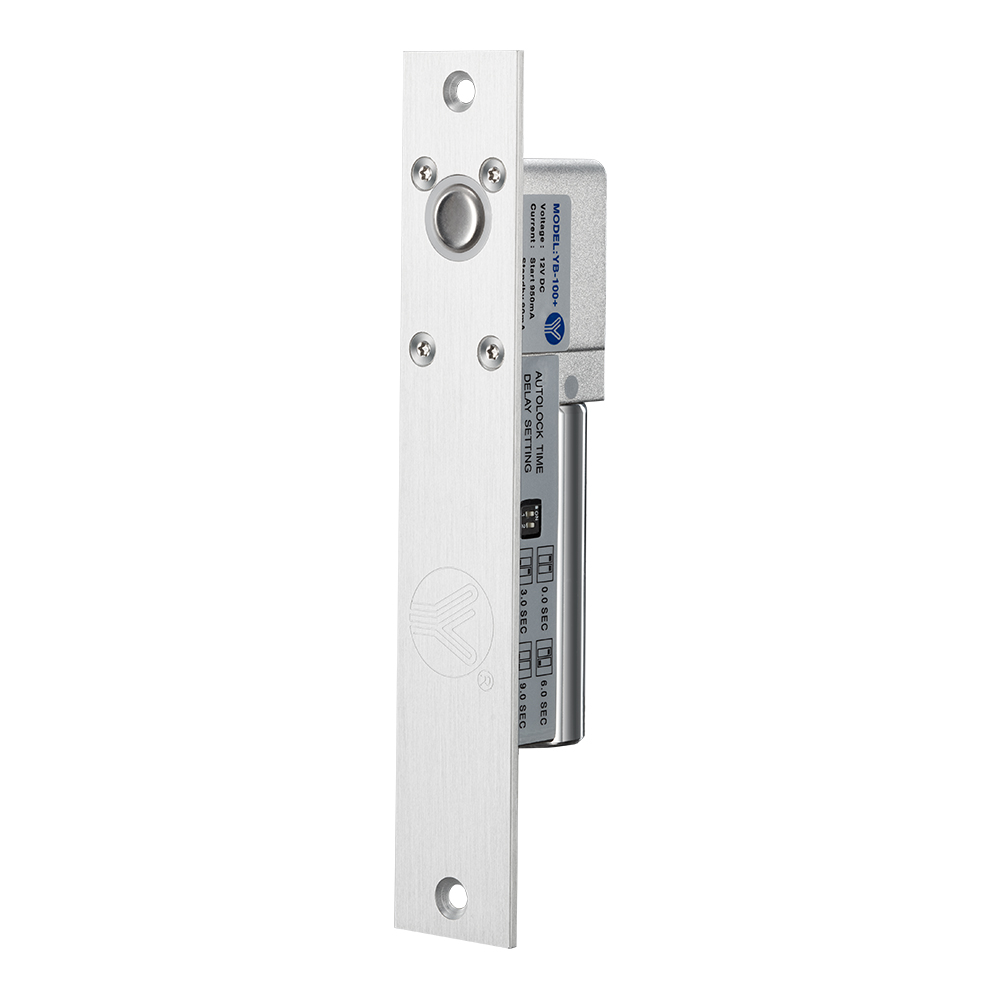

| Product Parameter |
Parameter Description |
| Feature |
Fail Safe |
| Face Plate |
205Lx35WX41H(mm) |
| Strike |
90Lx25Wx2H(mm) |
| Voltage |
12VDC+ |
| Start Current |
900mA |
| Standby Current |
110mA |
| Bolt structure |
304 stainless steel integral structure |
| Suitable For |
Wooden Door,Glass Door,Metal Door |
| Autolock Time Delay |
0,3,6,9sec |
| Signal Output |
Door status Output,NO/COM |
| Surface Temp |
Low Temperature |
| Surface Temp |
8mm |
| Operating Temperature |
-10～+55℃(14~131F) |
| Operating Humidity |
0～90%(non-condensing) |
| Special Designed |
Tested to 500000 operations |
| Face Place Material |
High Aluminum |
| Weight |
0.72kg |
| Certification |
CE-EMC CE-LVD FCC RoHS REACH WEEE |
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Double protection for loading current.
Photoelectricity Control,Low Temperature，
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
30 |
| Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
| Gross Weight(KG) |
21.44 |
