| Product Parameter |
Parameter Description |
| Feature |
Fail Secure |
| Face Plate |

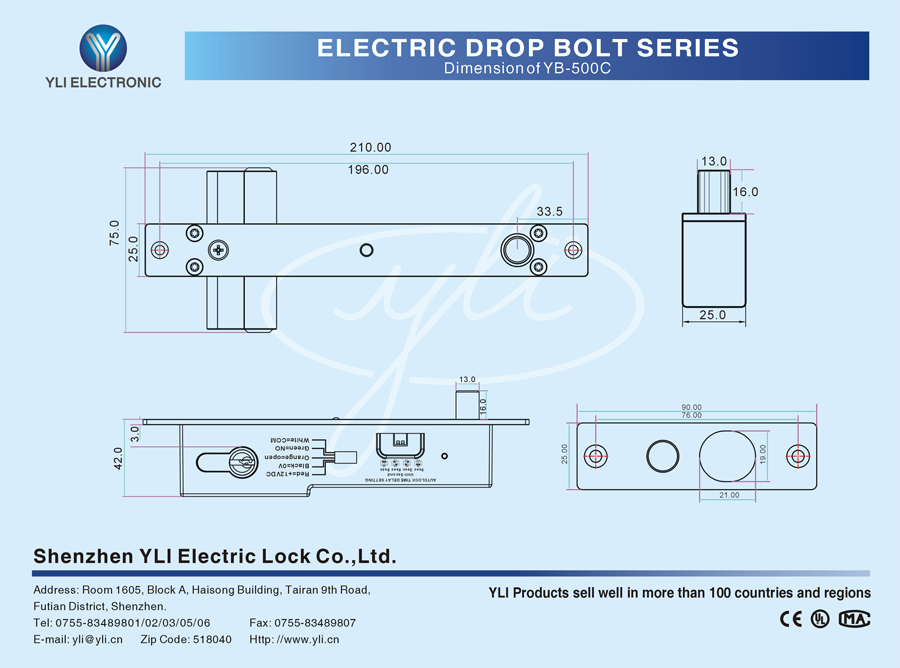

210Lx25WX42H(mm) |
| Strike |
90Lx25Wx3H(mm) |
| Bolt |
16(length)*13(diameter)(mm) |
| Voltage |
12VDC(24VDC need order) |
| Start Current |
960mA |
| Standby Current |
180mA |
| Autolock Time Delay |
0,3,6,9sec |
| Door statue signal output contact |
NO、COM |
| Cylinder |
One side is key, another side is knob |
| Suitable For |
wooden door,metal door, PVC door |
| Surface Temp |
Low Temperature |
| Induction Distance |
8mm |
| Bolt structure |
304 stainless steel |
| Static strength test |
approx. 950kg (third-party report) |
| LED |
Light on indicates locked, light off indicates unlocked |
| Operating temp |
-20℃～+60℃(-4~140℉) |
| Operating Humidity |
0～90%(non-condensing) |
| Special Designed |
Tested to 500000 operations |
| Face place material |
304 stainless steel, wire draw finishing |
| Weight |
1.0kg |
| Patent No. |
ZL2014205328215 |
| Certification |
MA CE-EMC CE-LVD FCC RoHS REACH WEEE |
Photoelectricity Controling,no machanical defect.
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Long Life with 500000 cycles.
Special photoelectricity control,three steps current application.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Working with cylinder cannot be copied,do increase security.
The humanized design of Led helps to indicate the working status of lock.
The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
With complete accessories,available for any doors.
Photoelectricity Control,Low Temperature，
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
