| Product Parameter |
Parameter Description |
| Feature |
Power-off lock (NO); power-off unlock (NC) |

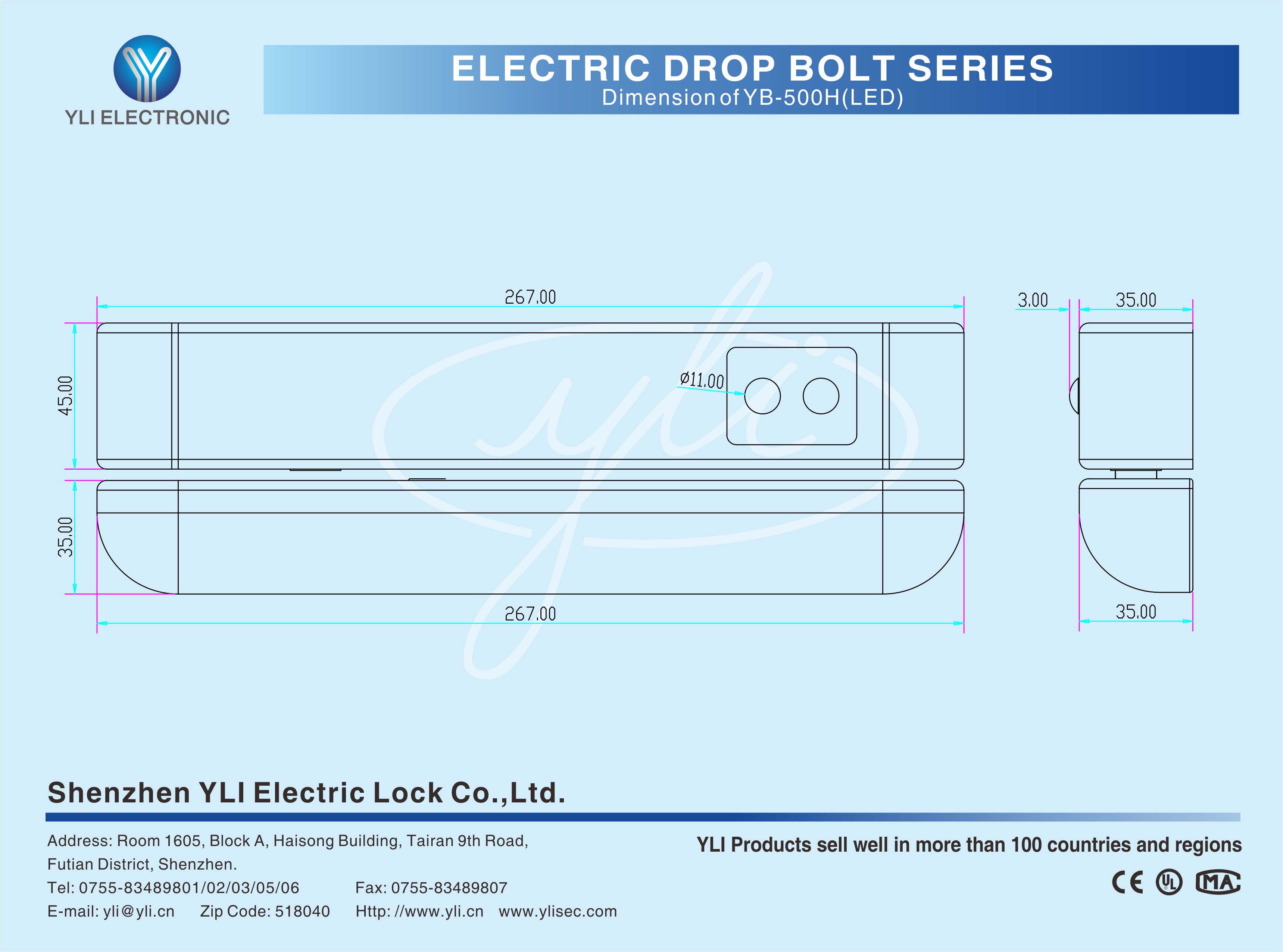

| Lock body size |
267Lx45Hx35W(mm) |
| Shelf size |
267Lx35Hx35W(mm) |
| Voltage |
DC12V |
| Start Current |
1000mA |
| Standby Current |
180mA |
| Signal Output |
Door status Output,NO/COM |
| Autolock Time Delay |
0/3/6/9S |
| L E D |
Green light unlocked; Red light locked |
| Induction Distance |
8mm |
| Weight |
0.9kg |
| Certification |
MA CE-EMC CE-LVD RoHS |
Fashion Design Golden Ratio Radian, Solid Material
Top fashion golden ratio design, integral stainless steel solid material, high strength 304 stainless steel solid latch,
can withstand 1000KG of impact;
LED Indicator Real-time feedback of door status detection
The LED indicator on the face plate shows the
action and operation state of the electric lock, red indicates locked,
green indicates unlocked
Adjustable' Time Delay Smart chip stable output
Set the delay time of locking by yourself, so as to avoid the swing
state when the door is just dlosed. The magnetic induction
distance between the door gap is 8mm
Signal Output Real-time feedback of door status detection
Intelligent logic circuit design detects the lock state on the latch,
the door state detects the NO/COM contact of signal output,
daily intelligent control of access control
Modern & Simple Simple Style
Professionally designed durable solenoid valve, service life more
than 500,000 times, 180 degrees two-way open dooruse,both
inward swinging door and outward swinging door can be installed;
Automatic Control
Real-time monitoring, securityand theft prevention
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
