| Product Parameter |
Parameter Description |
| Feature |
Fail Safe |

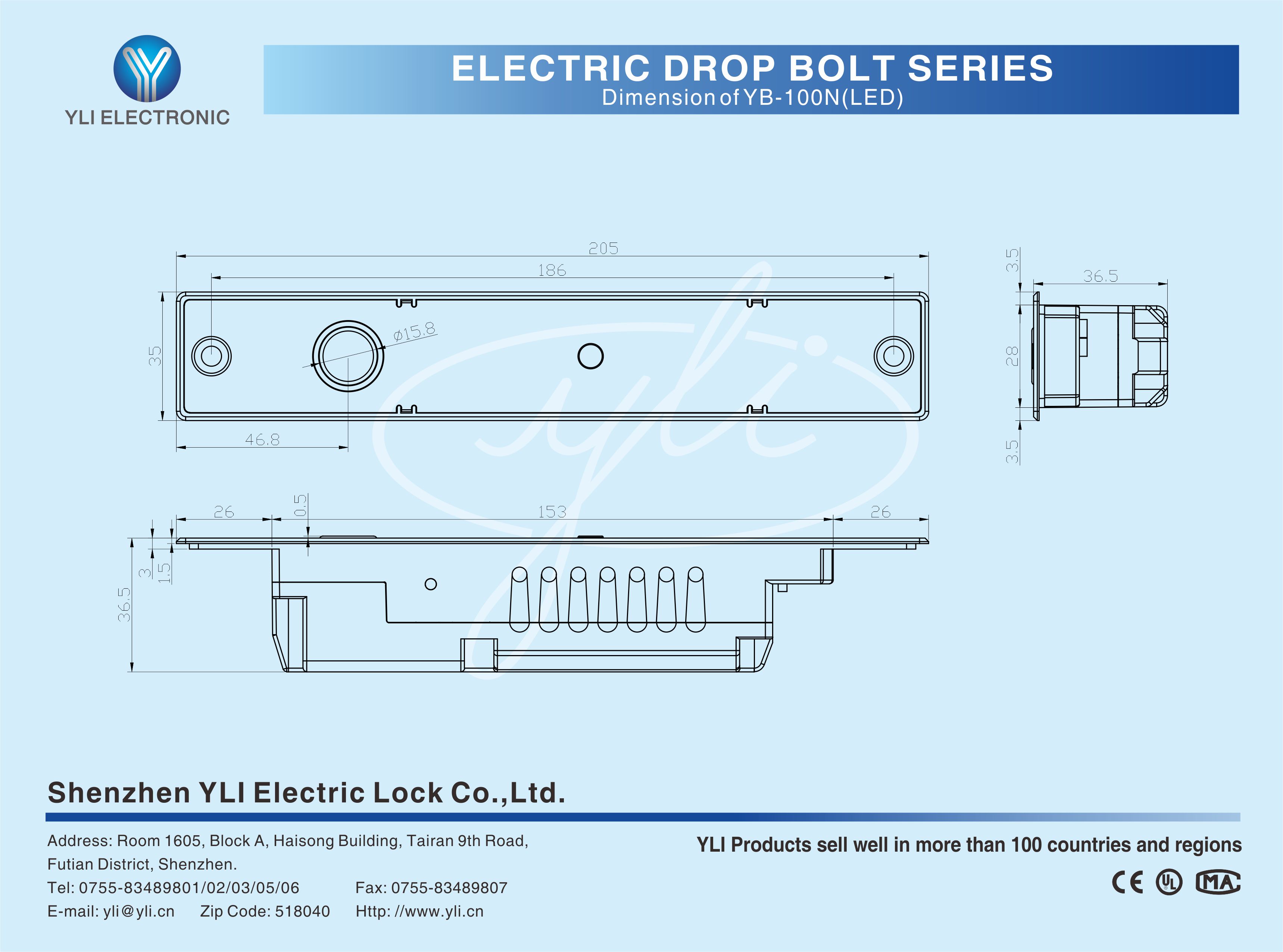

| Face Plate |
205Lx35Wx36.5H(mm) |
| Strike |
90Lx25Wx2H(mm) |
| Voltage |
12VDC |
| Current |
Start12V/ 980mA(+10%),Standby 12V/ 180mA |
| LED |
Green for unlocking while red for locking |
| Induction Distance |
≤8mm |
| Bolt structure |
304 stainless steel integral structure |
| Static strength test |
approx. 1300kg (third-party report) |
| Operating temp |
-25℃～+55℃(14~131F) |
| Operating Humidity |
0～90%(non-condensing) |
| Suitable For |
Wooden Door,Glass Door,Metal Door |
| Patent Number |
ZL2021301764386 |
| Weight |
0.55kg |
| Certification |
CE-EMC CE-LVD FCC RoHS |
Invasion resistant circuit,stop magnetic reed inspection automatically as locking and vandal resistant
Intelligent circuit,checking if locking properly
Time delay setting for automatic locking
LED shows status of lock
Horizontal or vertical installation
Diameter of stainless steel solid bolt is 16mm and 17.5mm as length
Decorating-plate-in lock body,easy installation
