| Product Parameter |
Parameter Description |
| Lock Size |

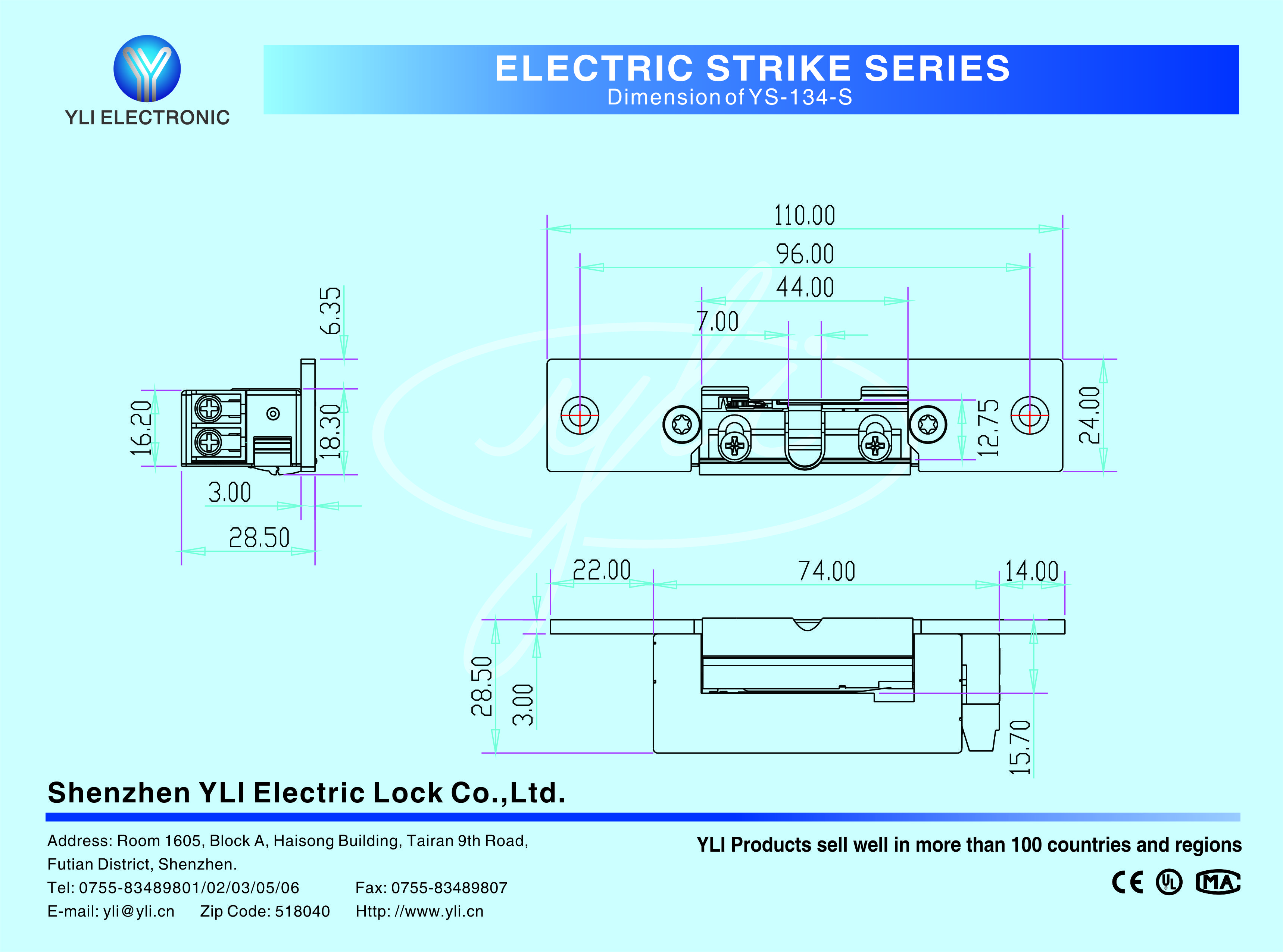

110Lx24Wx28.5H(mm) (YS-134-S)
120Lx24Wx31H(mm) (YS-134B-S) |
| Keeper |
Zinc die-casting |
| Keeper Width |
12.5-15.5mm(3mm Adjustable） |
| Static strength |
300kg |
| Voltage |
DC12V （Available DC24V） |
| Current |
12V/280mA(±10%) ; 24V/160mA (±10%) |
| Signal output |
Door signal NO,NC,COM |
| Special design |
Adjust the mechanical switch on the lock body to make the electric strike keep unlocked (it remains unlocked no matter the power is on or off) |
| Suitable For |
Narrow Wooden Door,Narrow Metal Door |
| Surface Temperature |
Within +20℃ |
| Suitable Temperature |
-10~+55℃(14-131F) |
| Operating Humidity |
0～95%(non-condensing) |
| Face plate Housing |
Surface by coating nickel |
| Protection performance |
With Diode Surge Absorption Device |
| Feature |
Fail Secure(NO) |
| Optional Accessories |
YS-307 |
| Weight |
0.28kg |
| Certification |
CE-EMC CE-LVD FCC RoHS REACH WEEE |
Holding 300kg.
Special design,easy to adjust the distance of the Lock-tongue.
Designed for Metal Frame drill a hole,then install it directly.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
