| Product Parameter |
Parameter Description |

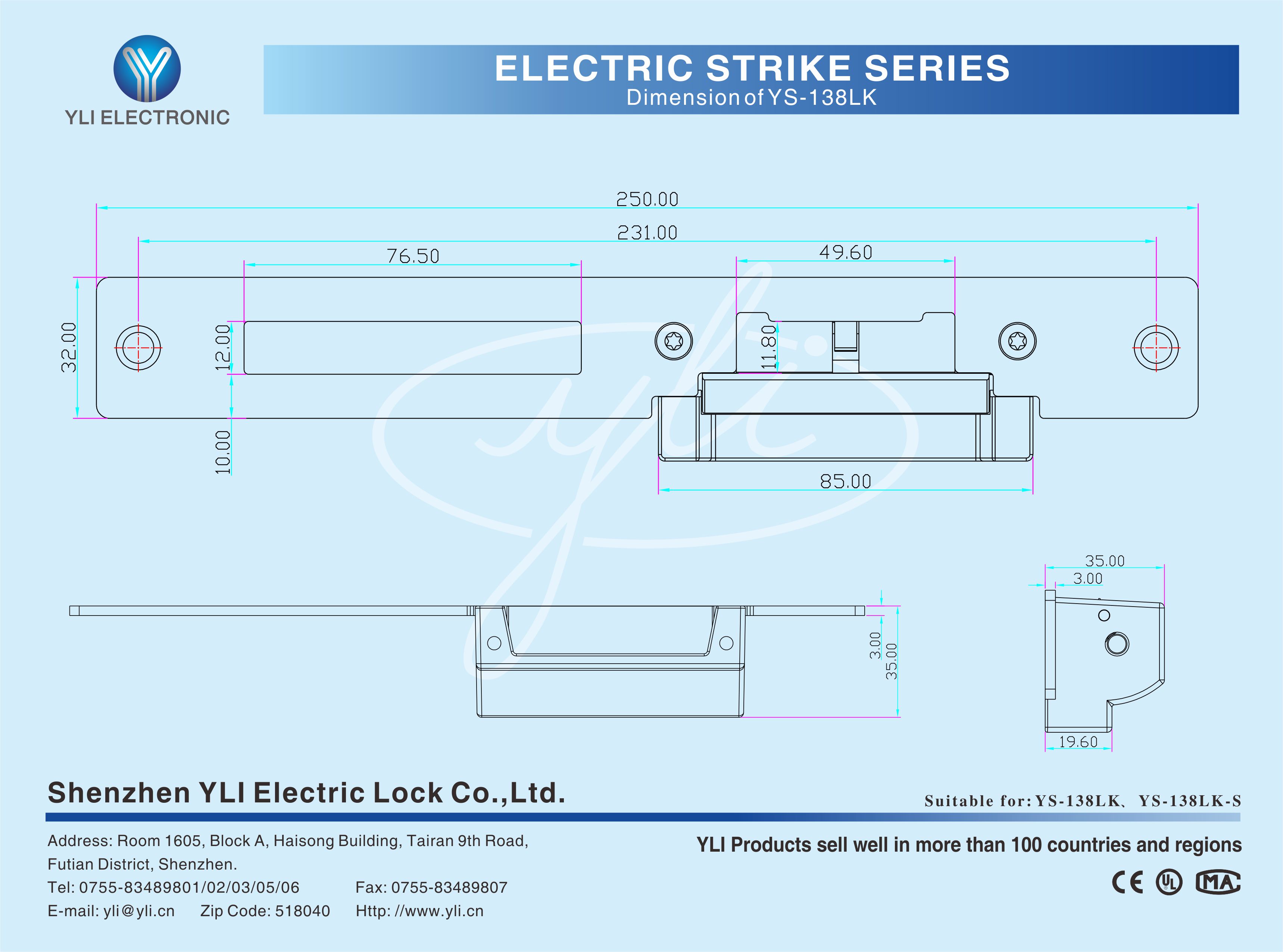

| Lock Size |
250Lx43.7Wx35H(mm) |
| Keeper |
Stainless Steel |
| Static strength test |
approx. 1300kg (third-party report) |
| Voltage |
DC12V (Need Order DC24V) |
| Current |
12V/320mA(±10%);24V/160mA(±10%) |
| Waterpoof Level |
IP65 |
| Feature |
Fail Safe (Factory default);Fail Secure (Adjustable) |
| Suitable For |
Wooden Door,Metal Door,PVC Door |
| Surface Temperature |
Within +20℃ |
| Suitable Temperature |
-10~+55℃(14-131F) |
| Operating Humidity |
0～95%(non-condensing) |
| Face plate Housing |
Painted Steel |
| Protection performance |
With Diode Surge Absorption Device |
| Optional Accessories |
YS-308 |
| Weight |
0.42kg |
| Patent No. |
201320470904.1 |
| Certification |
CE-EMC CE-LVD FCC RoHS REACH WEEE |
Waterpoof Level:IP65
Static strength test approx. 1300kg (third-party report)
Special design, NO/NC Adjustable
Designed for Metal Frame drill a hole,then install it directly.
Testing to 500000 cycles.
High-Temperature Painted,Durable and Beautiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
30 |
| Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
| Gross Weight(KG) |
12.6 |
