| Product Parameter |
Parameter Description |

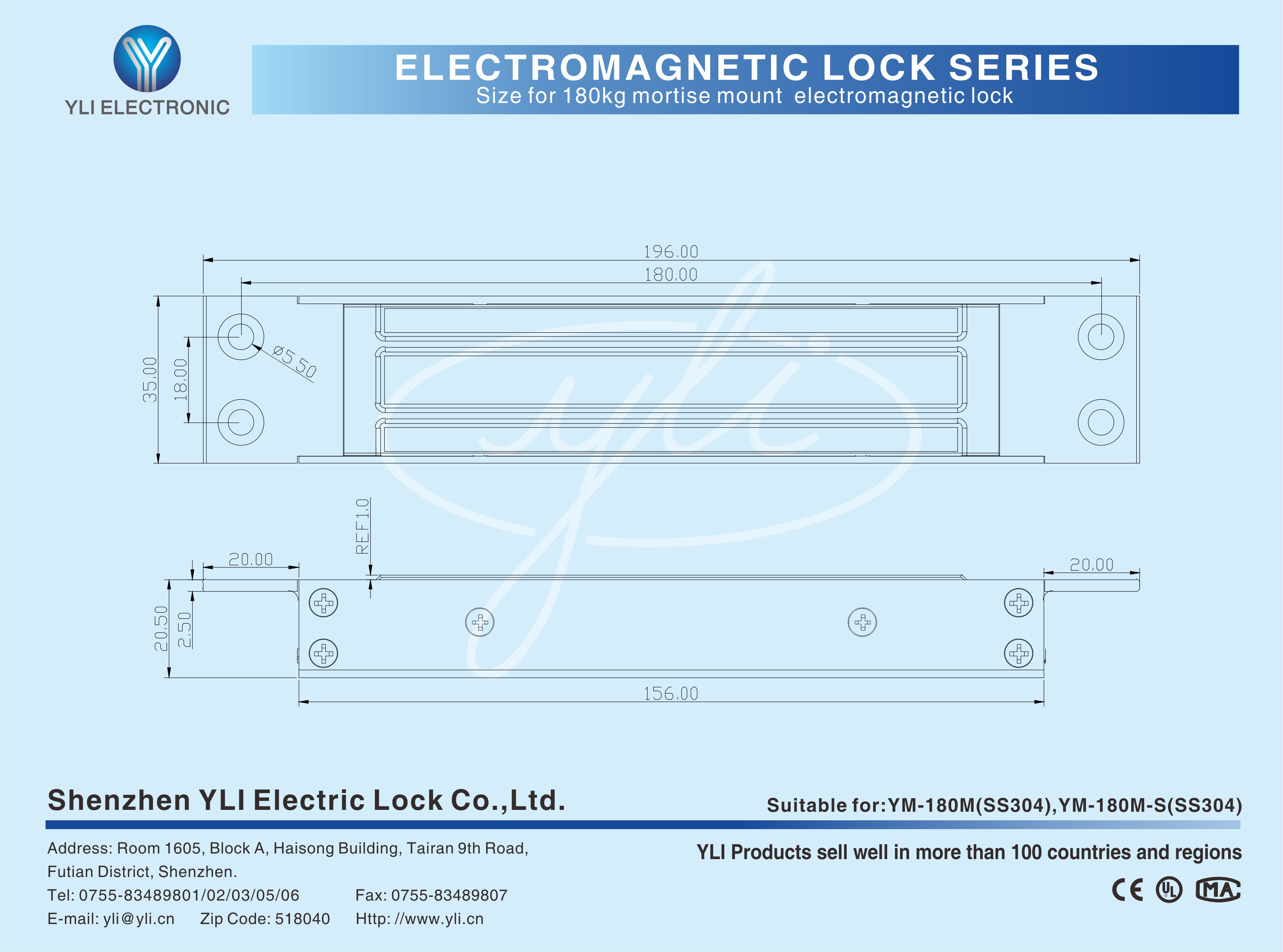

| Size |
185Lx41.8Wx22.4H(mm) |
| Armature Plate Dimension |
130Lx32x10H(mm) |
| Input Voltage |
DC12V(Default); DC24V(Adjustable) |
| Current |
12V/400mA(±10%)；24V/200mA(±10%) |
| LED |
Red shows locked ;Green shows unlocked |
| Signal Output |
Lock signal(NO/NC/COM) |
| Holding Force |
180kg(350Lbs)±10% direct pull |
| Operating temperature |
-30℃~+66℃ (-22~151F) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Holding force after salt spray test |
Holding force attenuation within 5% after 240 hours of salt spray test |
| Durability |
Passed 1 million tests |
| Holding force after durability test |
Holding force attenuation within 5% after 1 million durability tests |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds |
| Overvoltage test |
125% overload normal operation |
| Undervoltage test |
85% input voltage pull force test |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Flame-retardant lock body |
Potting with flame-retardant resin (grade :V-0) |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Certification |
MA CE-EMC CE-LVD FCC RoHS REACH WEEE |
| Weight |
1.2KG |
