| Product Parameter |
Parameter Description |

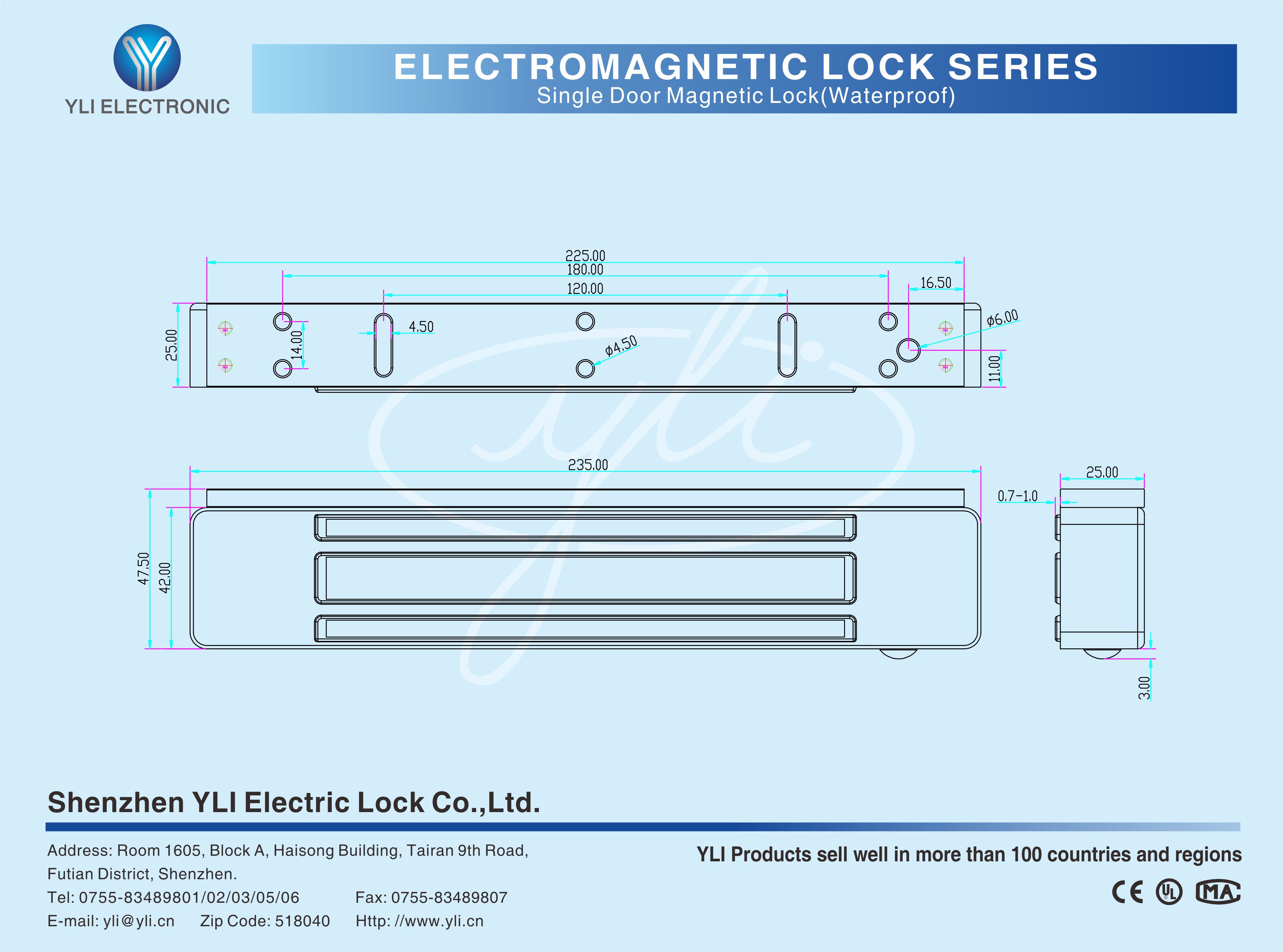

| Size |
235Lx47.5Wx25.5H(mm) |
| Armature Plate Dimension |
180Lx38.8Wx13.2H(mm) |
| Input Voltage |
DC12V(Default); DC24V(Adjustable) |
| Current |
12V/500mA(±10%) ; 24V/250mA(±10%) |
| LED |
Green light indicates unlocked; Red light indicates locked |
| Signal Output |
Lock Signal NO/COM |
| Holding Force |
280kg(600Lbs)±10% direct pull |
| Operating temperature |
-30℃~+66℃ (-22~151F) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Holding force after salt spray test |
Holding force attenuation within 5% after 240 hours of salt spray test |
| Durability |
Passed 1 million tests |
| Holding force after durability test |
Holding force attenuation within 5% after 1 million durability tests |
| Dynamic impact test |
45J hammer continuous impact 5 times |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds |
| Overvoltage test |
125% overload normal operation |
| Undervoltage test |
85% input voltage pull force test |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Flame-retardant lock body |
Potting with flame-retardant resin (grade :V-0) |
| Cover finish |
SUS 304 Stainless Steel |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Waterproof Level |
IP-68 |
| Weight |
2kg |
| Certification |
CE-EMC CE-LVD FCC RoHS REACH WEEE IP68 |
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
8 |
| Packing Size(L*W*H)(cm) |
62*14.5*14.3 |
| Gross Weight(KG) |
16.56 |
