UL Magnetic Lock
There are 31 Similar products,Comparison

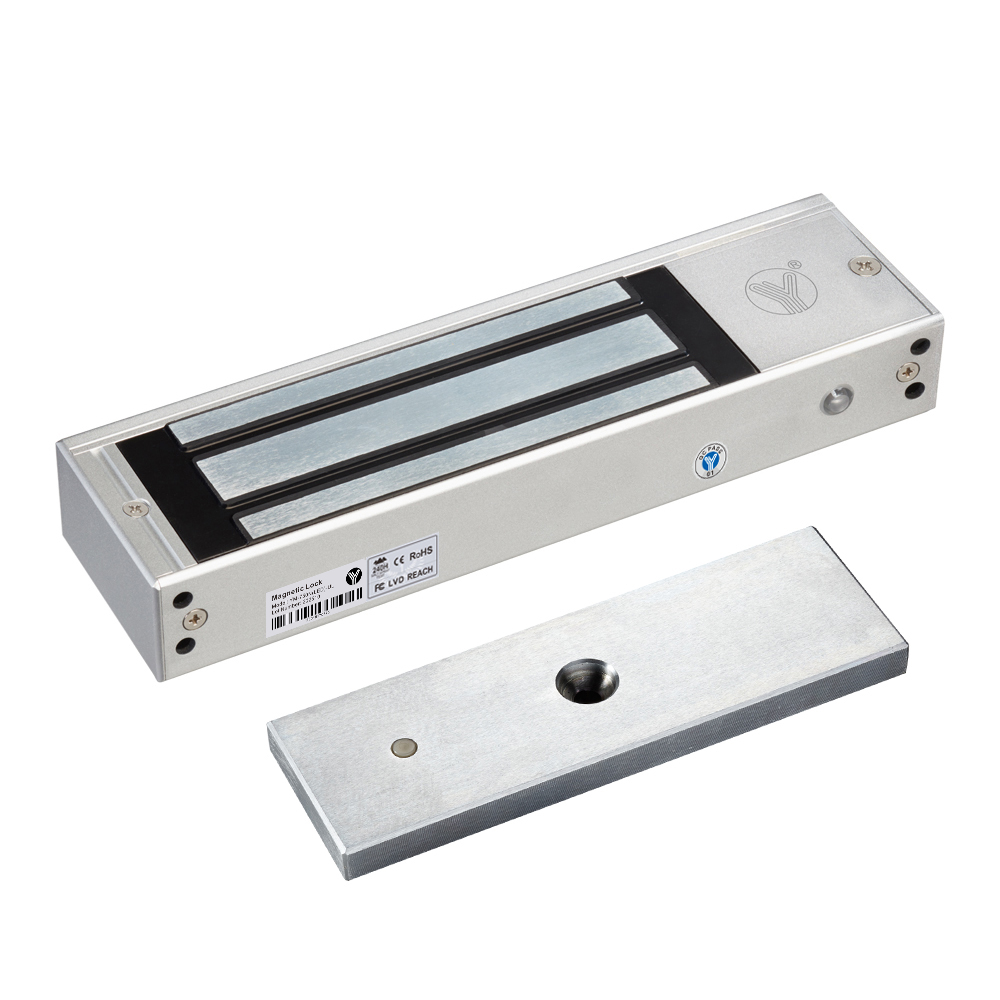

750kg Single Door Magnetic Lock with LED & Signal(1500Lbs)
Model:YM-750N(LED)-UL
YM-750N(LED)-UL Single door magnetic lock with signal output has been certified by UL294 &1034 as well as ANSI/BHMA A156.23 . In terms of safety, durability and environmental adaptability of the product, it has been tested by the world's most stringent standards,providing architects, consulting engineers, system integrators and end users with authoritative and obiective product performance and quality assurance.
Keywords:
Share to:
Product Parameter Parameter Description
Dimension 280Lx81.6Wx46H(mm)
Armature plate 190Lx70Wx13H(mm)
Input Voltage DC12V(Default); DC24V(Adjustable)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
LED Red shows locked ;Green shows unlocked
Signal Output NO while locking and NC for unlocking
Holding Force 750kg(1500Lbs)±10% direct pull
Operating temperature -30℃~+66℃ (-22~151F) (ANSI laboratory report)
Operating humidity 0~95% relative humidity
Surface temperature Within 20℃ above ambient temperature
Salt spray test 240-hour exposure (National laboratory report)
Durability test 1,000,000 cycles (ANSI laboratory report)
Dynamic impact test 45J hammer continuous impact 5 times (ANSI laboratory report)
Residual magnetism test Demagnetization and unlocking within 0.5 seconds (ANSI laboratory report)
Overvoltage test 125% overload normal operation (ANSI laboratory report)
Undervoltage test 85% input voltage pull force test (ANSI laboratory)
Housing treatment Anodized hard plating (500-hour salt spray test report)
Lock core certification Encapsulation with American UL-certified fireproof resin
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Weight 5.9kg
Certification UL294 & 1034  ANSI BHMA
Holding force:750kg±10%
Applicable temperature:-30℃~+66℃
Applicable humidity:0~95%(non-condensing)
Corrosion resistance: Passed 240-hour salt spray test
Holding force after salt spray test: Holding force attenuation within 5% after 240 hours of salt spray test
Durability: Passed 1 million tests
Holding force after durability test: Holding force attenuation within 5% after 1 million durability tests
Anti-residual magnetism: Unlock within 0.5 seconds
Overvoltage test: No damage after 24 hours at 125% of the rated voltage
Low-voltage test: Holding force remains unchanged at 85% of the rated voltage
Flame-retardant lock body: Potting with flame-retardant resin (grade :V-0)
Strength of lock core: Enhance the structural strength by laser welding
Warranty period: 3 years
Certified by multiple countries and in compliance with international safety standards


Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 4
Packing Size(L*W*H)(cm) 32*18.5*20
Gross Weight(KG) 23.88
