Type：CX-ULM-T small blind area ultrasonic level meter ex
Illustrate：Anti-explosion small blind area ultrasonic level meter is a kind of product exploited for needing of high precise in some situation.
CX-ULM-T Small blind area ultrasonic level meter
Brief introduction
Anti-explosion small blind area ultrasonic level meter is a kind of product exploited for needing of high precise in some situation. And it’s the first ultrasonic level sensor which small blind area achieves to 0.06m, and 1mm measure resolution. Those made its more stable and reliable.This product complies with the standard of GB3836.1-2000. The anti-explosion sign is ExiallBT4.
Applications
Proximity Detection
Robot range finder
Obstacle detection, collision avoidance
General-purpose distance detection
High precise
Strong anti-interference
Automatic temperature compensation
Firm and stable transducer suit for bad industry condition
General Specification:
Max sensing range: 1m
Unusable area: ：<0.06 m
Emission angle: 9°
Max measure error: 1.5mm
Transducer frequency: 40KHz～430.0KHz
Display resolution: 1mm
Display: 4 figures 8 segments LED (LCD available)
Power: DC 12~30V Power consumption: <1.5W
Output signal: 4~20mA or RS485
Max load impedance: 300Ω
Fix model: M48 screw ring
Protection degree: IP65

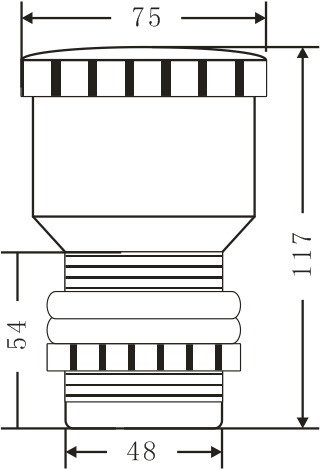

Dimension :Φ75mm×117mm×M48
Keyboard: 3 sensitive metal piece key
The material: PP, ABS
Ambient temperature:-20℃~60℃
Ambient pressure: normal condition
Humidity: 0 to 95%
Weight: 332g
Anti explosion sign: Exia II BT4
