Float level controller
 1.Main parameters :

Type	Protection  class	Medium  pressure	Medium  temperature  (℃)	Net weight	Switch  difference  (mm)	Tuning  method	Installation  type	Power and  contact capacity  and working life
CX-FLM-UQK-01	dIIBT4	1.0 MPa	Normal:≤100℃ High-tem:≤350℃	1.5～2.0Kg	≤8	Not  adjustable	Horizontal	AC:220V/1.5A 110V/2.5A  DC:24V/2.5A 240V/0.5A  Working life: 5×100^2
CX-FLM-UQK-02	dIIBT4	1.0 MPa			25～550	Class  adjustable	Horizontal
CX-FLM-UQK-03	dIIBT4	1.0 MPa			8～1000	No-class  adjustable	Vertical

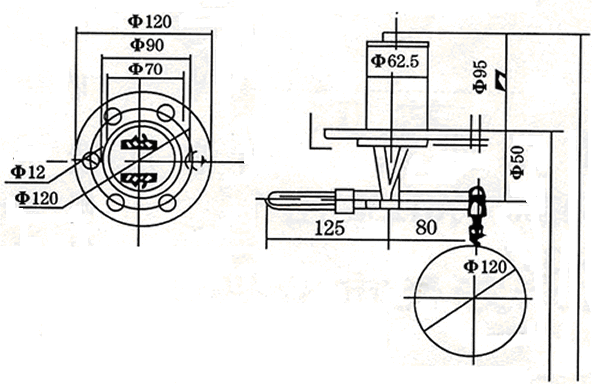

2. Structure principle
Float level controller is consist of float assembly, range switch block and housing. A pair of magnetic steel
installs at float end and range switch block separately.
When the float change up and down with the change of level in the limit of movement, the magnetic steel
will move up and down accordingly. Push the magnetic steel of range switch block move via non-magnetic housing. To make the output contact connects of off. Control backward signal device send out
light or sound signal. When level go up and down, only when it within up and low limit of movement,
output contact can connect or off, and there are no signal send out.
The float of controller and flange is made of SS304, common junction box is SS304, for explosion proof type,
the junction box is aluminium. The float assembly of controller and range switch block are isolated, to avoid
leakage and other defect.
