Type：CX-WLTFM Electric fuel turbine flowmeter
Illustrate：1) size: 1/2” , 3/4” , 1” 2” electric fuel turbine flow meter 2) ISO,CE,SGS certificates for export 3) More 80% meters for export 4) consecutive years as gold supplier for export

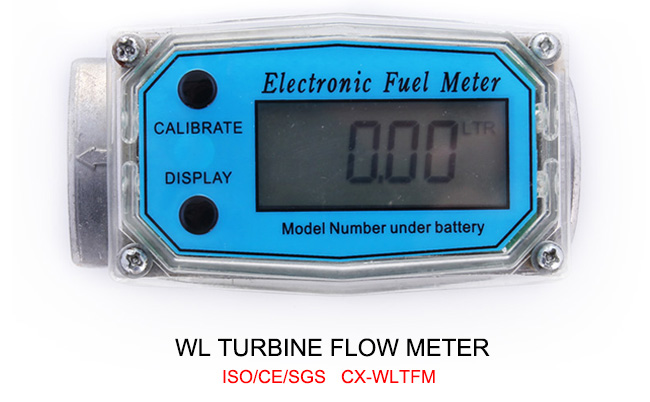

CX-WLTFM Electric fuel turbine flowmeter
1)Turbine flow meter control panel adopts Modular design, Computer modules are local shows,
2) it is full-featured and easy-to-use with Simple structure and clear interface.
3) size: 1/2” , 3/4” , 1” 2” electric fuel turbine flow meter
4) ISO,CE,SGS certificates for export
5) More 80% meters for export
6) consecutive years as gold supplier for export
This is main features of Electric fuel turbine flowmeter
1.High accuracy, Everlasting, Small volume turbine flowmeter

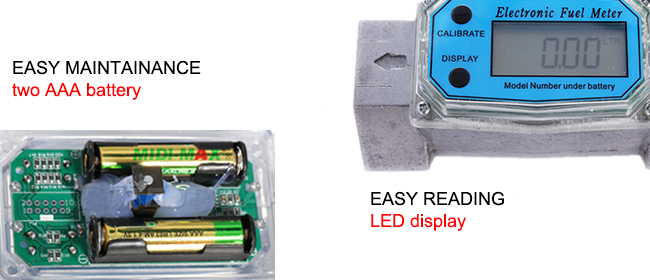

2.Lithim battery, can supply 9000 hours power
3.Module desi output module, sensor and long-distance transfers
4.It can be used with IS
5.Easy to change the spare parts inside, and easy to assembling and maintain
Technical Parameters for Electric fuel turbine flowmeter
| Connecting Style | NPT(female thread) ANSI(flange) | |

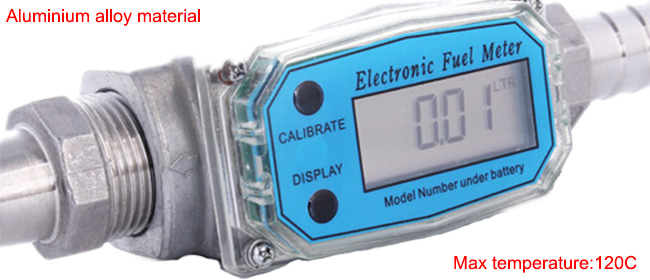

| Material | Aluminum or 316 stainless steel | |

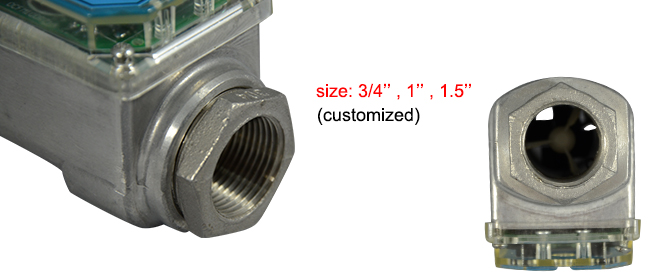

| Present dimension | 1/2” , 3/4” , 1” 2” | |
| Flow range | 1/2” :1-10GPM (3.8-37.9LPM) | |
| 3/4” : 2-20GPM (7.6-75.7LPM) | ||
| 1” :5-50 GPM (18.9-190LPM) | ||
| 1-1/ 2” : 10-100GPM (38.0-380LPM) | ||
| 2” : 20-200GPM (76-760LPM) | ||
| Accuracy | Turbine flowmeter with microlat | |
| Turbine flowmeter with microkit | 1/2’’ | ±1.5% |
| 3/4” | ±1.0% | |
| 1” | ±1.0% | |
| 1-1/ 2” | ±0.5% | |
| 2” | ±0.5% | |
| Repetition | ±0.1% | |
| Pressure class | 300PSI/21 | |
| Temperature range | 140F-+2500F(-400℃-1210℃) | |
| 140F-+1400F(-100℃-600℃) | ||
| Material of connected parts | noumenon | Aluminum |
| axletree | chinaware | |
| axes | carbide | |
| rotor | PVDF | |
| annulus | 316 | |
| Supposed filter dimension | 55 | |
We do Best in every details to produce Best We do Best in every details to produce Best Portable ultrasonic flow meter . .
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
