| Product Parameter |
Parameter Description |

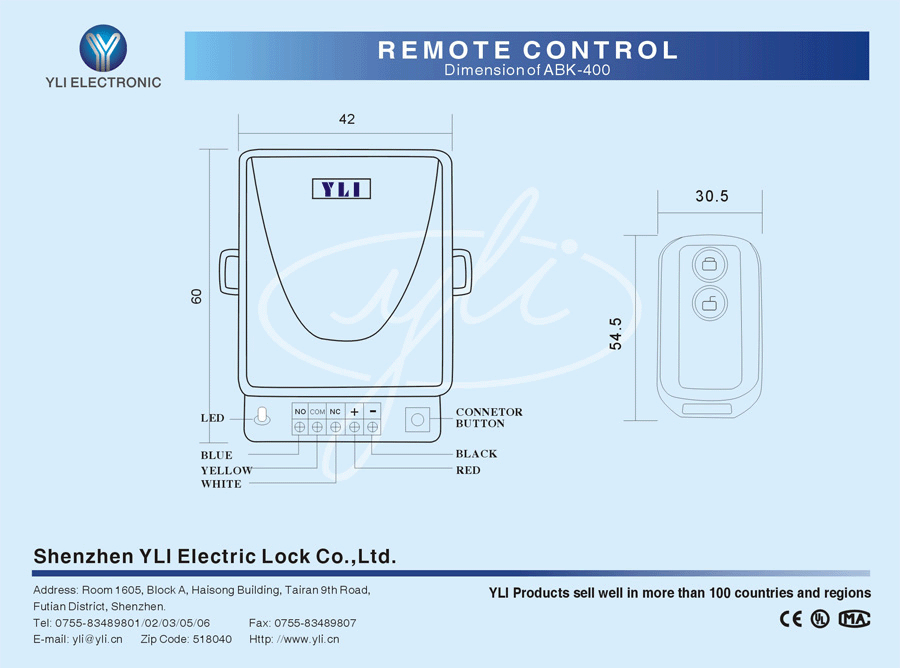

| Dimensions |
62Lx43.5Wx30H(mm) |
| Input |
12VDC (24VDC by Optional) |
| Current |
8mA |
| Aptional Accessories |
WBK-400A |
| Contact Output: |
NO、NC、COM
|
| Transmitting Freq |
433.92MHZ |
| Suitable for |
access control |
| Transmitting Distance |
≥50m(in the open area) |
| Finished for Shell |
Plastic, Abrasion Resistant |
| Capable of |
to 30 Transmitter |
| Weight |
0.09kg |
Simply Operate, Study key for set up
Sensitive Control
Skillful & Beautiful Design
Adopt and Roll a yard of Chips,Defended False Funtions
The Best Choice for Access Contro
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
