Infrared Sensor
There are 12 Similar products,Comparison

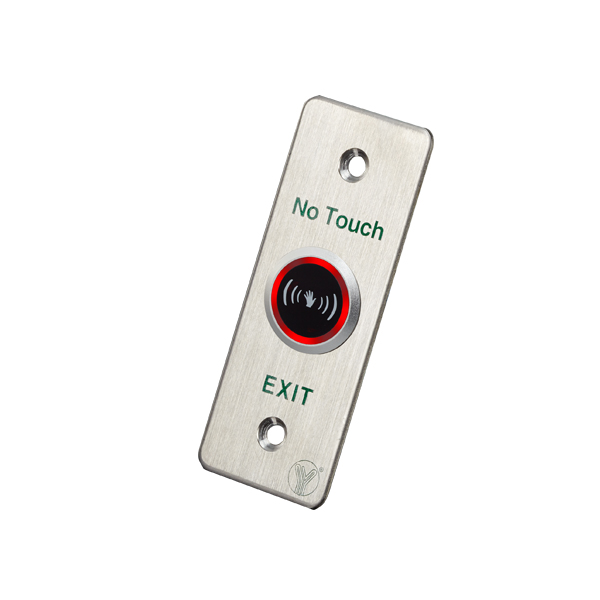

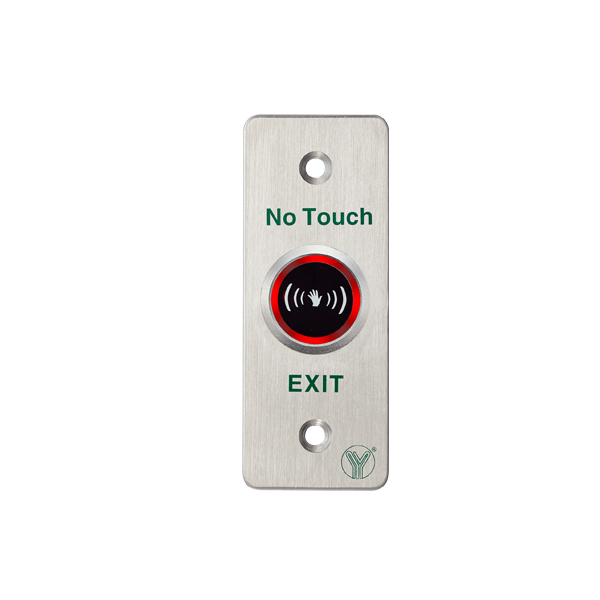

Infrared Sensor Exit Button
Model:ISK-841A(LED)
ISK-841A is an Infrared Sensor Exit Button with stainless steel in size of 90Lx35Wx37.7H(mm) suitable for all kinds of locks. 4-12cm induction distance is adjustable, 1~25S Time delay is adjustable. Red??LED indicator: Power ON(standby);Green LED indicator: Power ON(sensation).
Keywords:
Share to:
Product Parameter Parameter Description

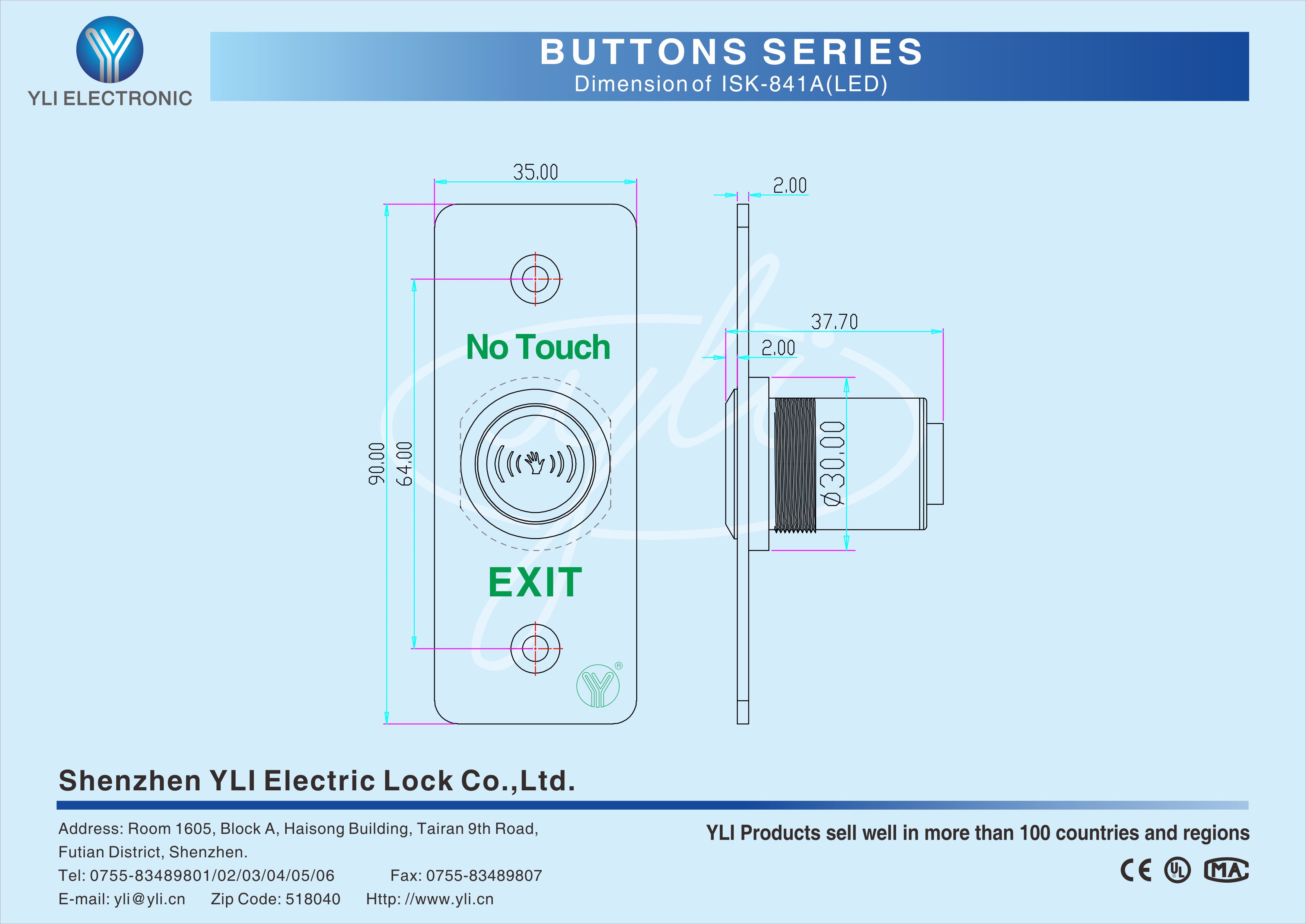

Dimensions 90Lx35Wx37.7H(mm)
Standard Structure
304 stainless steel panel with wiredrawing finish
Input DC12V
Current Standby 40mA,Operation: 70mA
Contact Rating 1A@30VDC
Output Contact NO/NC/COM
Mechanical Life 1000,000 tested
Material Stainless
Operating temp -20℃~+50℃(14-131F)
Suitable Humidity 0-95% (relative humidity)
Detection range 4-12cm(Adjustable)
Time delay 1~25s(Adjustable)
LED Indicator Red  LED indicator: Power ON(standby)
Green LED indicator: Power ON(sensation)
Patent No. ZL2014205318942
Weight 0.18kg
Certification CE-EMC CE-LVD FCC-VOC
Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 1000,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
