Touch Button
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Touch Button
There are 11 Similar products，Comparison

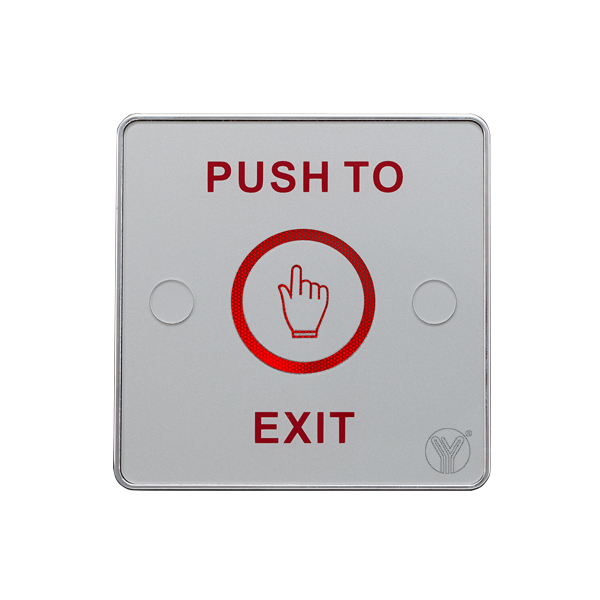

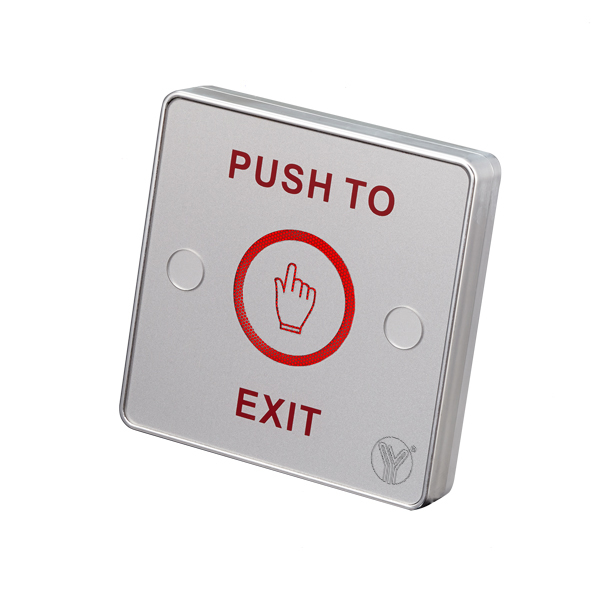

Touch Exit Button
Model：TSK-830B(LED)
TSK-830B(LED) ia a Touch Exit Button with LED, in size of 114Lx70Wx16H(mm), with Luxury , Fashion,Trend ,Technology design.
Keywords：
Share to：
Product Parameter Parameter Description
Dimensions 86Lx86Wx16H(mm)
Voltage 12-24V
Current Standby 20mA,Operation: 70mA
Output Contact NO/NC/COM
Mechanical life 1000,000 tested
Current Rating 1A@30VDC  0.5A@125VDC
LED Status Red: Standby   Green : Operation
Wire color Red:Positive
Black:Negative
Yellow:NC
White:COM
Green: NO
Color Silver
Weight 0.1kg
Certification CE-EMC CE-LVD FCC RoHS REACH WEEE

Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
