Electric Bolt
首頁  ?  Home  ?  Products  ?  Electric Bolt
There are 42 Similar products,Comparison
Fail Secure Electric Bolt W/Cylinder
Model:YB-620(LED)
YB-620(LED) is an all-metal construction electric bolt.with European-type cylinder and has both electric control and manual control functions. The Fail Secure is Unlocked when energized.Under the temperature of 60 ℃ or?-40 ℃ below zero it can be operated normally benefit by the all-metal linkage parts. The 304 stainless steel bolt can withstand 1700kg holding force.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Fail Secure

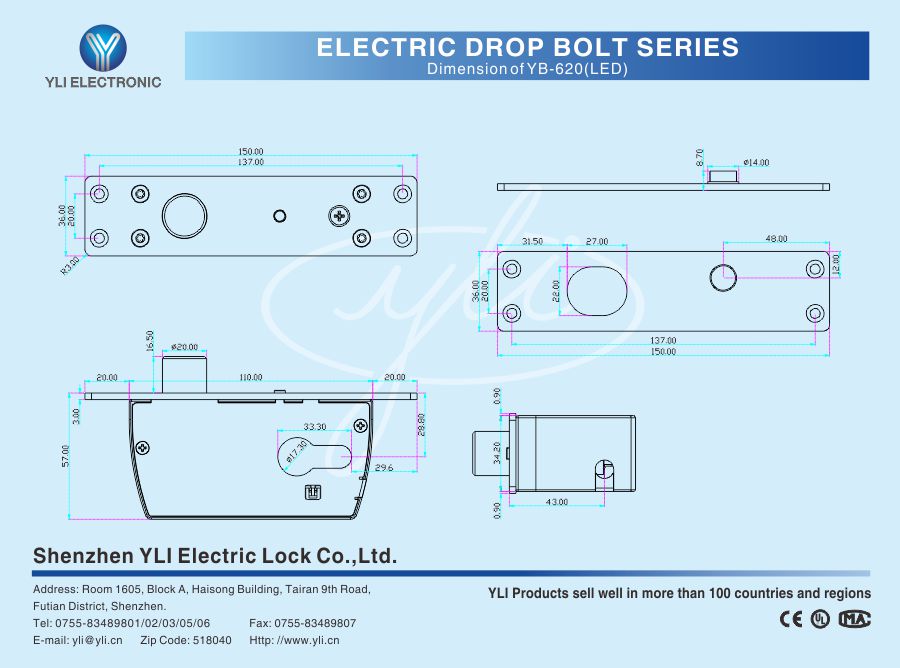

Lock Body 150Lx36WX57H(mm)
Magnetic Plate 150Lx36Wx3H(mm)
Bolt 16.5(length)*20(diameter)(mm)
Voltage DC12V
Start Current 1000mA
Standby Current 350mA
LED Light on indicates locked, light off indicates unlocked
Suitable For Wooden door , metal door , fireproof door , glass door
Autolock Time Delay 0,3,6,9sec
Signal Output Lock signal(NO/NC/COM);Door signal(NO/COM)
Material 304 stainless steel,wire draw finishing
Induction Distance Within 8mm
Bolt structure 304 stainless steel
Static strength test approx. 1700kg (third-party report)
Patent Number ZL2018220169105
Weight 1.25kg
Certification MA CE-EMC CE-LVD RoHS



Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life  with 500000 cycles.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact NC,NO,COM
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Photoelectricity Control,Low Temperature,
  A:The  Low Current is Changed immediately;
  B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
