American Standard Electric Strike
There are 16 Similar products,Comparison

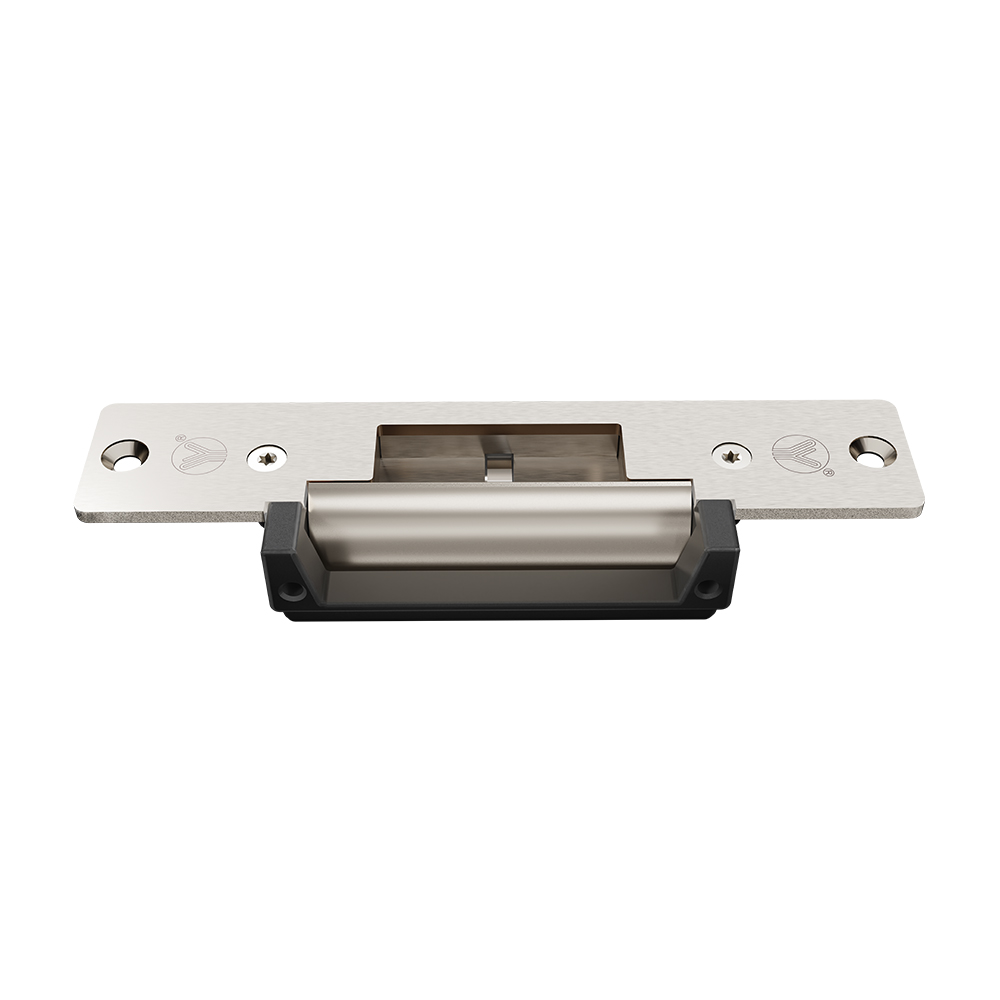

American Standard Electric Strike W/Signal(Stainless steel)
Model:YS-138N-S(SS304)
ANSI Heavy Duty electric strike with signal output (stainless steel) is designed for use with ANSI cylindrical locksets. It can be fitted to wooden door,metal door,PVC door ,etc. It features both “electrically controlled” operation for daily use and “manual operation “ for emergencies. Equipped with one set of NO/NC/COM to provide real-time feedback of door status to the access control system. Field selectable fail secure or fail safe.It features a reinforced durable solenoid designed for continuous operation (tested and certified for 1 million cycles of continuous electrification). With patented design, the internal moving parts are effectively integrated into a single unit, ensuring robust structure and stable performance. The operating mode fail secure or fail safe can be adjusted as needed.
Keywords:
Share to:
Product Parameter Parameter Description
Lock Size 165Lx43Wx35H(mm)
Keeper  stainless steel precision casting
Static strength test approx. 800kg (third-party report)
Voltage  DC12V
Current  12V/280mA(±10%)
Feature  Fail Safe (Factory default);Fail Secure (Adjustable)
Suitable For  Wooden Door,Metal Door,PVC Door
Signal Output  Door status Output,NO/NC/COM
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Protection performance  With Diode Surge Absorption Device
Optional Accessories  YS-305、YS-306
Weight  0.38kg
Certification MA CE-EMC CE-LVD FCC-VOC REACH WEEE
Static strength test approx. 800kg (third-party report). Special design, NO/NC Adjustable Designed for Metal Frame drill a hole,then install it directly. Testing to 500000 cycles. High-Temperature Painted,Durable and Beautiful Artical. CE Certificate by European Union, MACertificate by China Public Security office.

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing Quantity(PCS/CTN) 30
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 12.6
