| Product Parameter |
Parameter Description |
| Dimensions |
L105xW63xH35(mm) |
| Keeper depth |
12mm |
| Keeper width |
50mm |
| Voltage |
DC12V(DC 24V customizable) |
| Current |
12V/280mA(±10%); 24V/140mA(±10%) |
| Static strength test |
approx. 800kg (third-party report) |
| Installation method |
Surface mounted (use with mechanical locks) |
| Application |
Wooden doors, metal doors, fire doors |
| Surface temperature |
Below ambient temperature+20℃ |
| Applicable temperature |
-20°C~+55°C(-4-131°F) |
| Applicable humidity |
0~95%relative humidity |
| Material of housing |
Zinc alloy (high temperature painted) |
| Protection performance |
With Diode Surge Absorption Device |
| Material of faceplate |
SUS304 stainless steel (surface brushed) |
| Weight |
0.4kg |

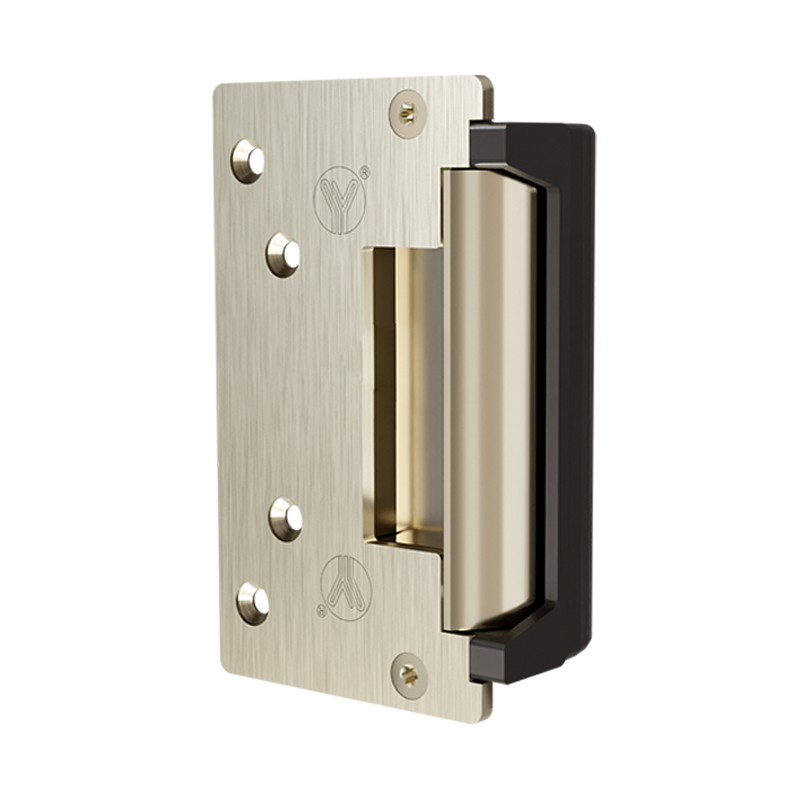

Surface mounted electric strike, no need to slot on door
frame, easy to install; with door signal output
Static strength rating of 1000 pounds-force (4448 N)
Dynamic strength rating of 50 footpounds-force (68 J)
Solenoid valve has been tested 250,000 times (UL laboratory)
More than 500,000 times aging test
SUS304 stainless steel faceplate,
precision cast SUS304 high-strength strike keeper
