| Product Parameter |
Parameter Description |
| Lock Size |

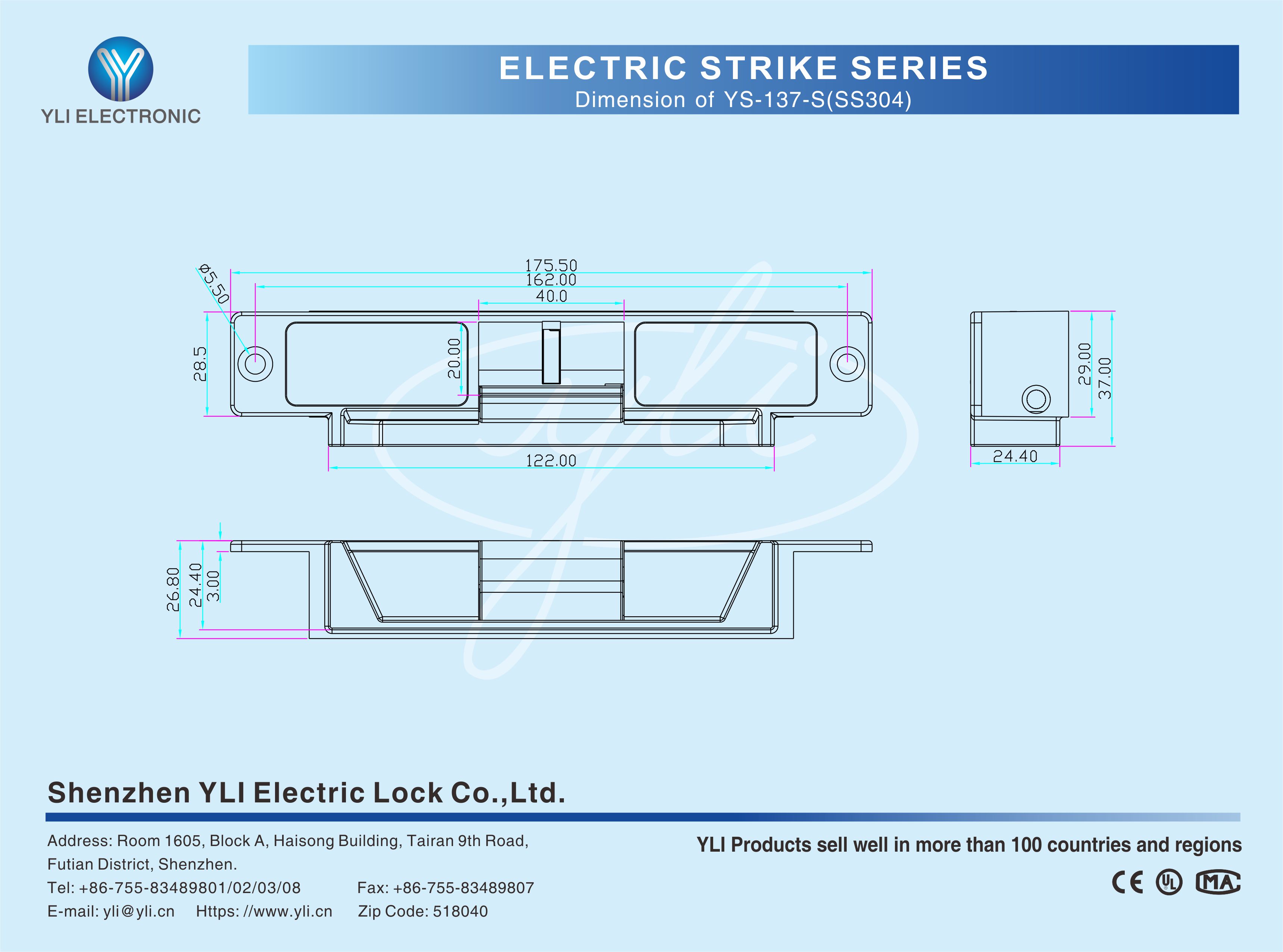

175.5Lx28.5Wx26.8H(mm) |
| Keeper |
304 Stainless Steel |
| Static strength |
500kg |
| Voltage |
DC12V (Need Order DC24V) |
| Current |
12V/320mA;24V/160mA |
| Door status sensor |
NO/NC/COM |
| Lock status sensor |
NO/NC/COM |
|
Panel selection |
Stainless steel, high strength aluminum alloy |
| Suitable For |
Wooden Door,Metal Door |
| Surface Temperature: |
Within +20℃ |
| Suitable Temperature |
-10~+55℃(14-131F) |
| Operating Humidity |
0～95%(non-condensing) |
| Face plate Housing |
Painted Steel |
| Lock tongue |
Surface by coating nickel |
| Protection performance |
With Diode Surge Absorption Device |
| Optional Accessories |
YS-305 YS-306 |
| Weight |
0.5kg |
| Certification |
MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
Enhanced stress structure design Special design, NO/NC Adjustable 100000 solenoid valve special design Power to open the door or door adjustable power supply Lock signal NO/NC/COM signal output
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
60 |
| Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
| Gross Weight(KG) |
23.4 |
