| Product Parameter |
Parameter Description |

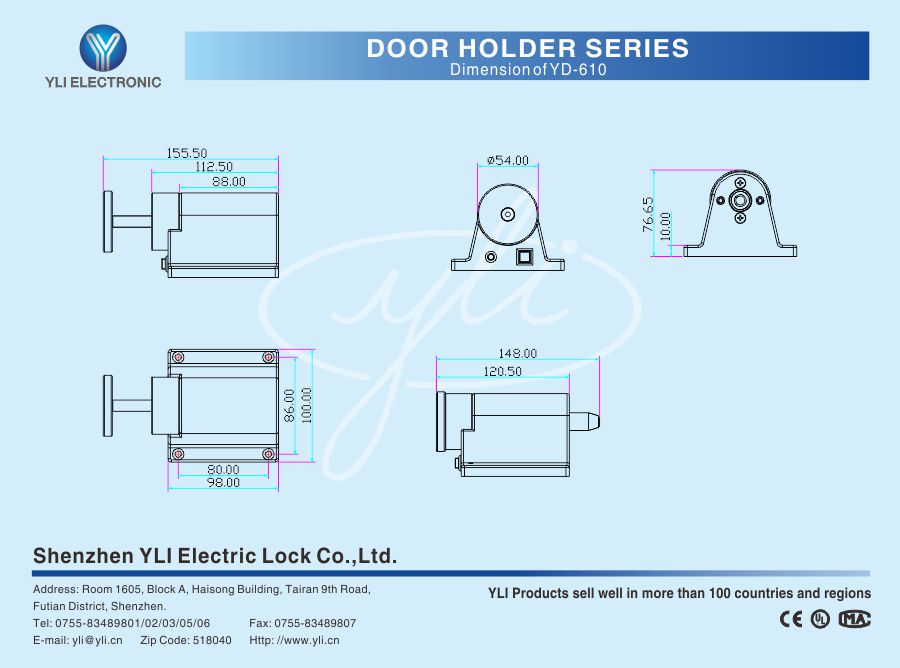

| Dimensions |
148Lx100Wx76.65H(mm) |
| Suction plate size |
Φ54x8.0(mm) |
| Voltage |
Factory Default：24VDC，12VDC(Adjustment) |
| Current Draw |
12V/140mA 24V/70mA |
| Suitable for |

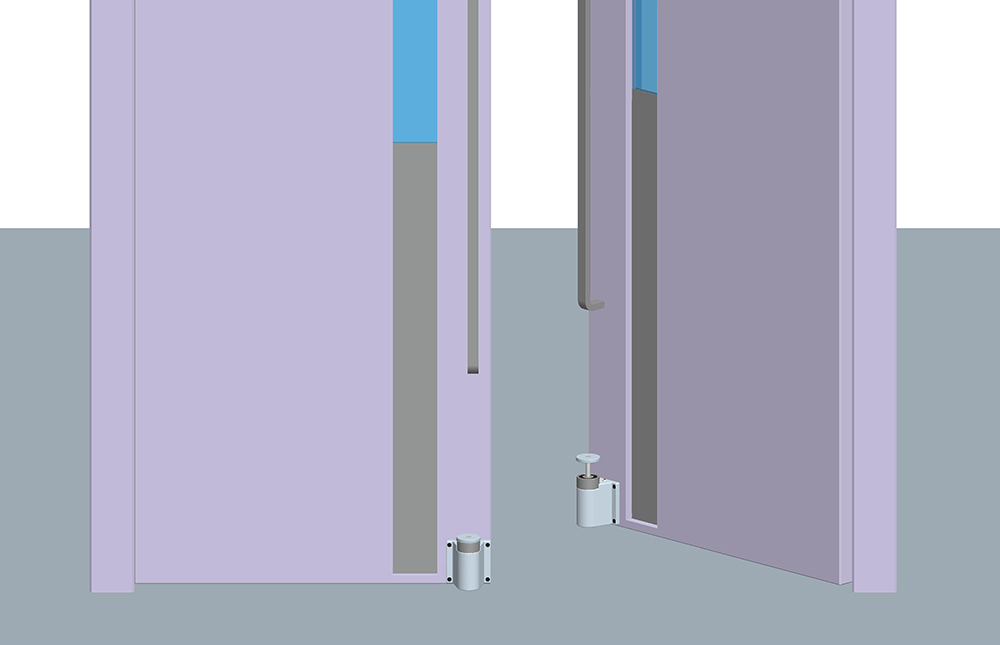

All kind of the single & double smoke proof door |
| Surface Temp |
≤+20℃ |
| Operating Temp |
-10～+55℃(14-131F) |
| Suitable Humidity |
0~90%(relative humidity) |
| Optional |
The hand moves and closes the door to release the button |
| Salt spray test |
500-hour exposure (National laboratory report) |
| Weight |
1.5kg |
| Certification |
CE-EMC FCC |

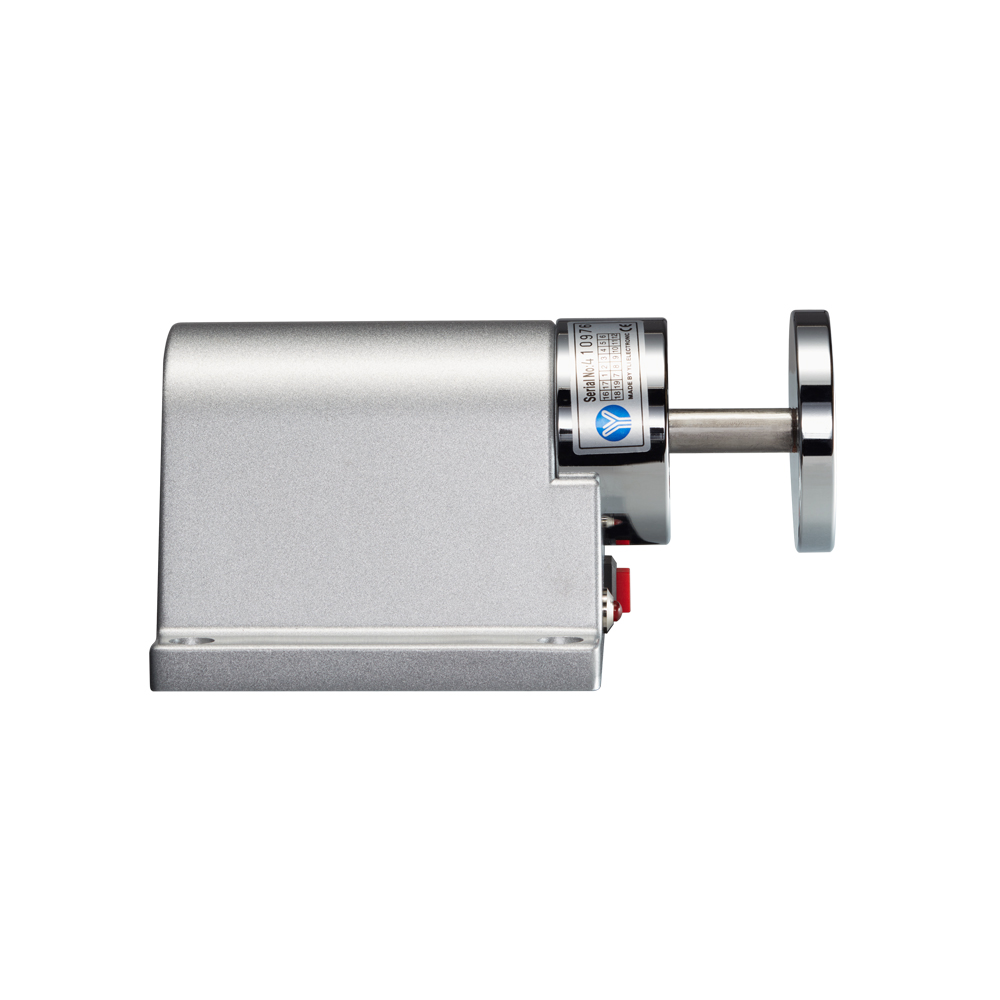

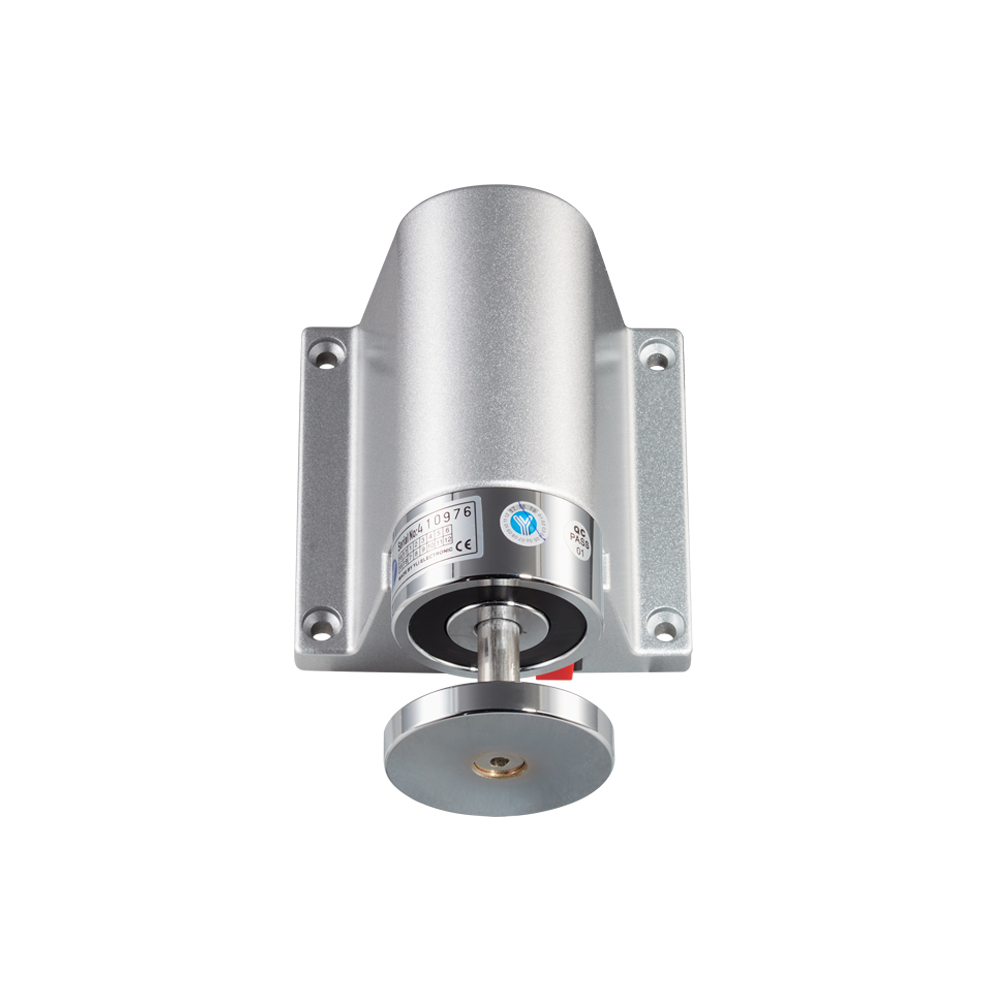

New type of electromagnetic device,electromagnetic part combines with armature plate.
Integration of structure and function.Fail Safe.Build-in bolt&LED&release button.
Bi-directional voltage feature.
all-in structure,its characteristic:die casting,all-in structure;
build-in bolt,its characteristic:applying principle of spring,bolt works as linkagewith armature plate;
12VDC/24VDC optional
