| Product Parameter |
Parameter Description |
| Signal output |
Lock signal NO/COM (YM-70N-S) |

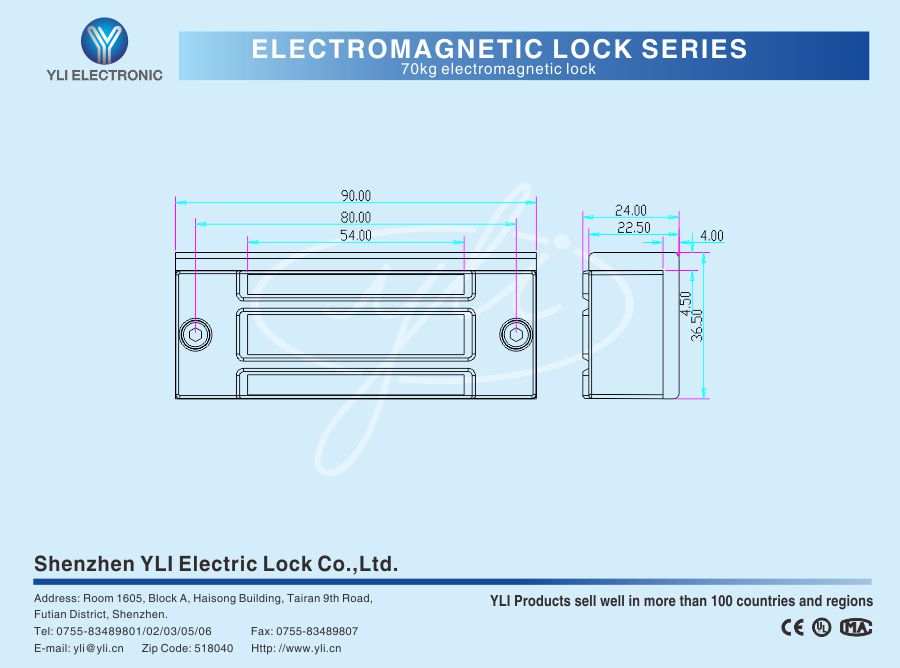

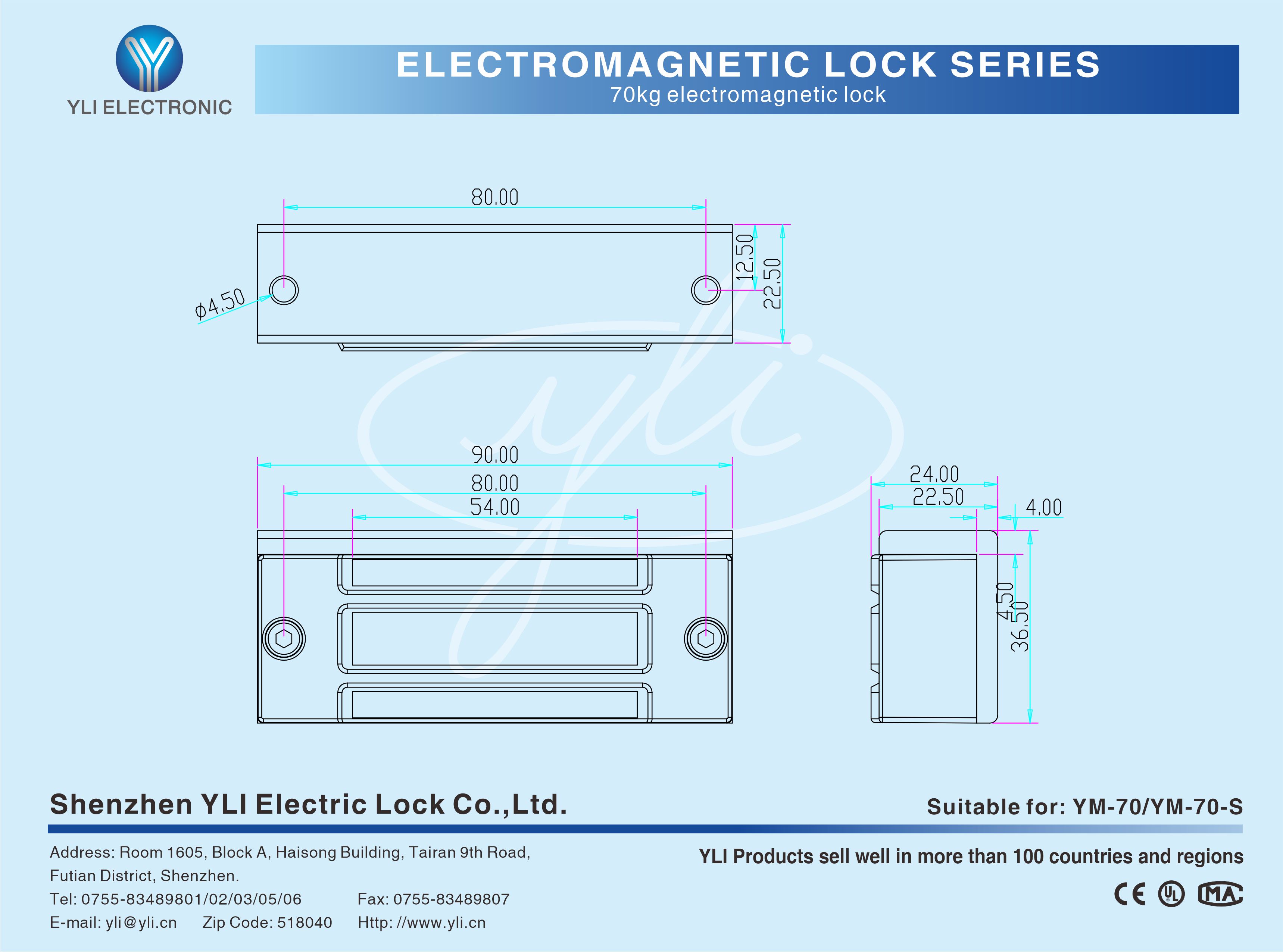

| Dimension |
90Lx36.5Wx24H(mm) |
| Armature Plate Dimension |
75Lx33Wx10H(mm) |
| Input Voltage |
DC12V(Default); DC24V(Adjustable) |
| Current |
12V/220mA(±10%)； 24V/110mA(±10%) |
| Holding Force |
70kg(140Lbs)±10% direct pull |
| Operating temperature |
-30℃~+66℃ (-22~151F) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds |
| Overvoltage test |
125% overload normal operation |
| Undervoltage test |
85% input voltage pull force test |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Lock core certification |
Encapsulation with American UL-certified fireproof resin |
| Suitable |
File Cabinet ,Display Cabinet |
| Cover Finish |
Anodized aluminum |
| Weight |
0.7KG |
| Certification |
CE-EMC CE-LVD RoSH |
Collinear Load Test 70kg,140pounds.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
| Packing Quantity(PCS/CTN) |
18 |
| Packing Size(L*W*H)(cm) |
62*14.5*14.3 |
| Gross Weight(KG) |
10.8 |
