| Factory default |
NO ; NC(Adjustable) |
| NO ;NC |
NC: when door is closed, power on to lock, power off to unlock,cylinder is invalid to
unlock in this status
NO: power off to lock, power on to unlock or unlock by cylinder |
| Face Plate |
275Lx25Wx51.9H |

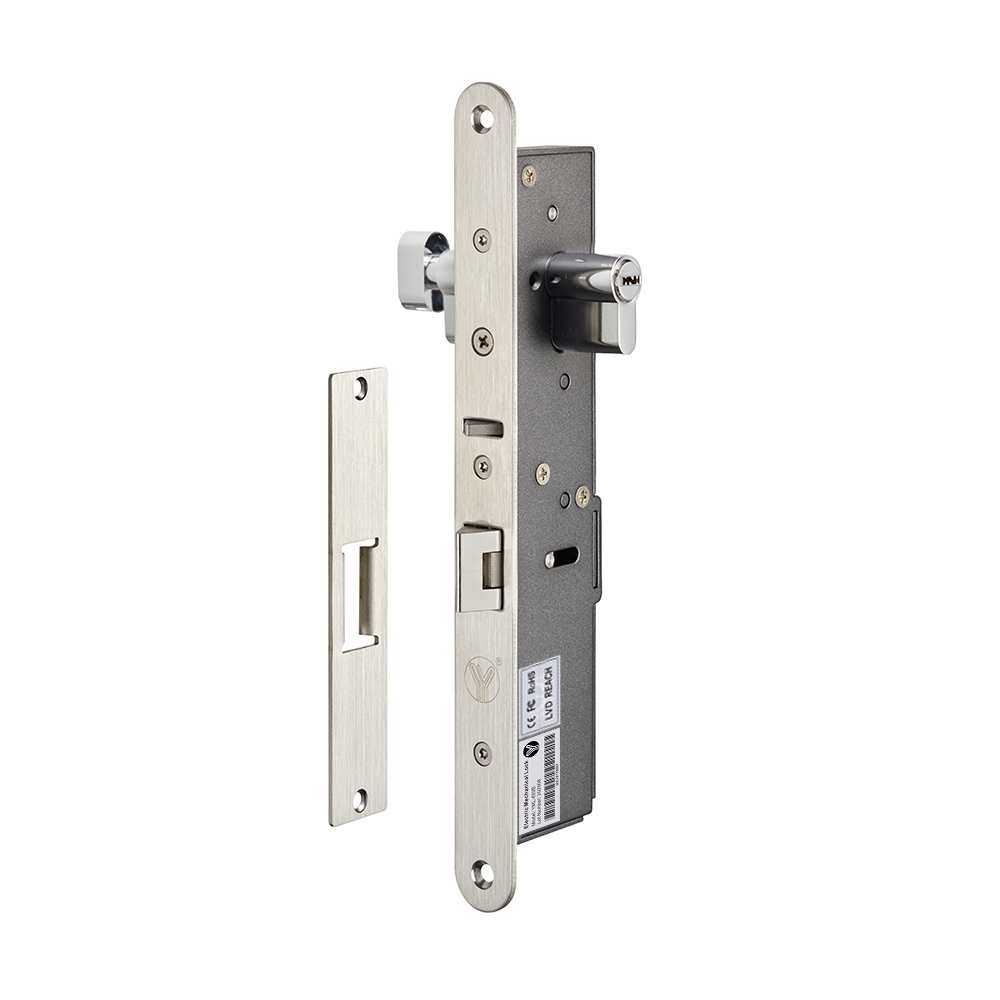

| Strike |
Standard Strike Plate: 150Lx30Wx1.5H;
Optional Strike Plate(for single swing door):150Lx48.7Wx1.5H;
Optional Strike Plate(for double swing door):150Lx67.5Wx1.5H |
| Magnetic Valve |
＞500000 times |
| Voltage |
12~24VDC/AC |
| Current |
≤300mA |
| Signal Output |
NO/COM/NO contact,only when achieve locking and door closing,signal output will switch |
| Operating temp |
(-20℃~+50℃) |
| Weight |
1.4kg |
| Certification |
CE-EMC |
For one-way or two-way opening mode
For narrow-frame wooden door and metal door
Fail safe and fail secure mode adjustable
304 stainless steel panel,stainless steel bolt withstands 1000lbs holding force
Vertical or horizontal installation
304 stainless steel plate for one-way or two-way
opening door selectable With door and lock status signal
Electric/Automatical;Locking mode selectable
