| Product Parameter |
Parameter Description |
| Lock |
182L X 30W X 25D(mm) |
| Armature Plate |
182L X 30W X 23.6D(mm) |
| Power supply |
DC 12V (24V need order) |
| Operation Current |
850mA |
| Holding Current |
400mA |
| Time Delay |
0/5/10/15sec. |
| Door status sensor |
NO/COM(0.1A@30VDC) |
| Lock status sensor |
NC/NO/COM(0.1A@30VDC) |
| Holding Force |
2000Lbs(1000kg) |
| Effective Distance(Max) |
3mm |
| LED |
Red shows locked; Green shows unlocked |
| Weight |
1.2kg |
| Certification |
MA CE-EMC CE-LVD FCC RoHS REACH WEEE |
For double swing doors
Suitable for 90 or 180 degrees double swing doors
Relock function
When the lock is unlocked, it will lock the door automatically according to the program.
Smart circuit design
With time delay function, door signal output and lock signal output
All-metal lock body
With integral profiles and precise work, this lock is stronger and more durable.
Ultra durable electromagnetic design
Professional and durable electromagnetic design with over 500,000 times qualified test.
One-piece and small size
One-piece design and small size, which will be easy to install to any kinds of door frame

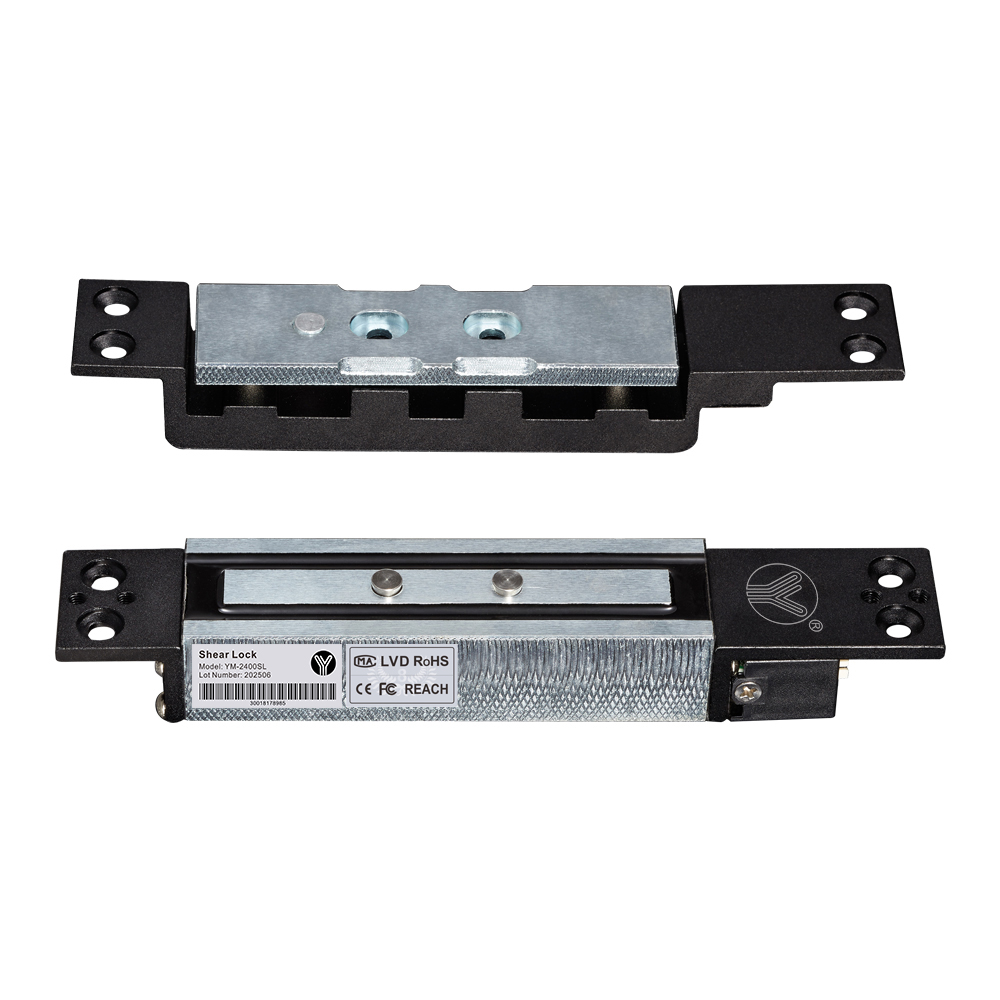

With both magnetic and latch design
By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1000kg

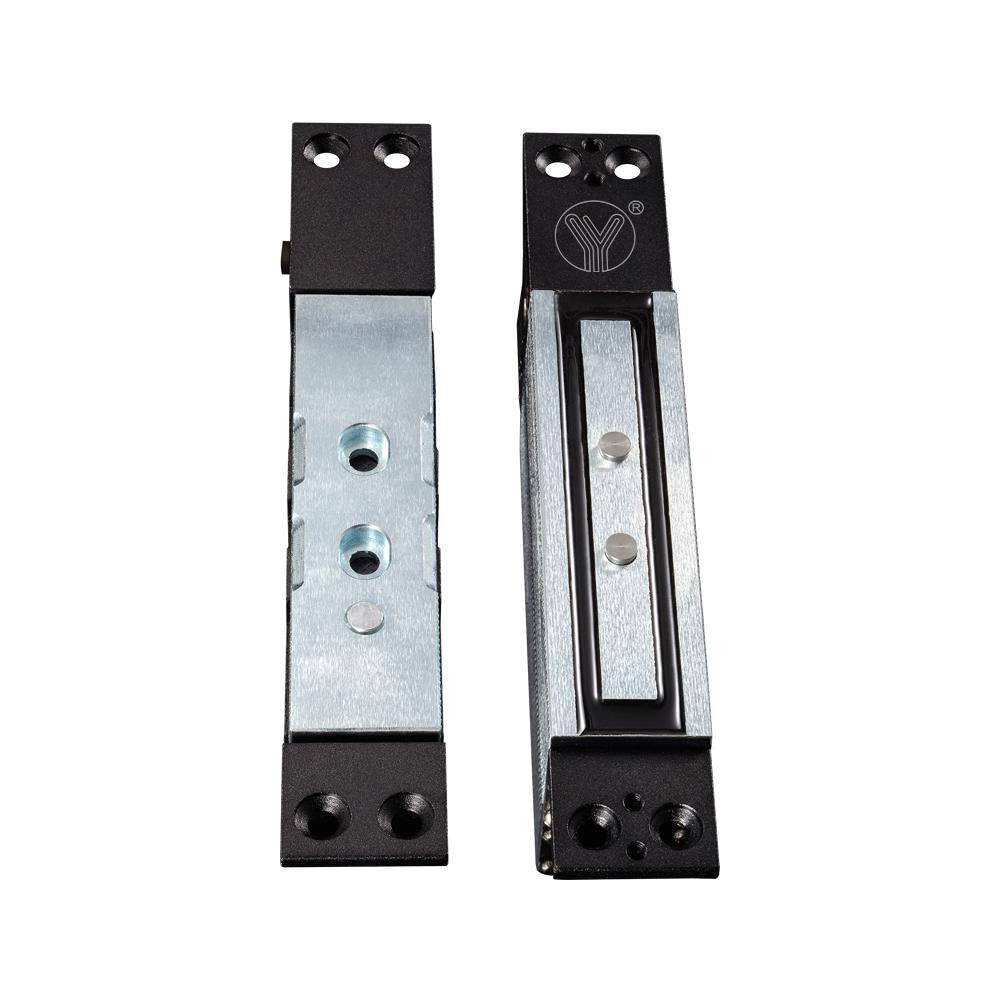

Armature plate with guide groove
With guide grooves at both sides of the armature plate
Door/lock status sensor
A set of NO/COM door signal output contact and a set of NO/NC/COM lock signal output contact
Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
