Explosion-proof Magnetic Lock
There are 10 Similar products,Comparison

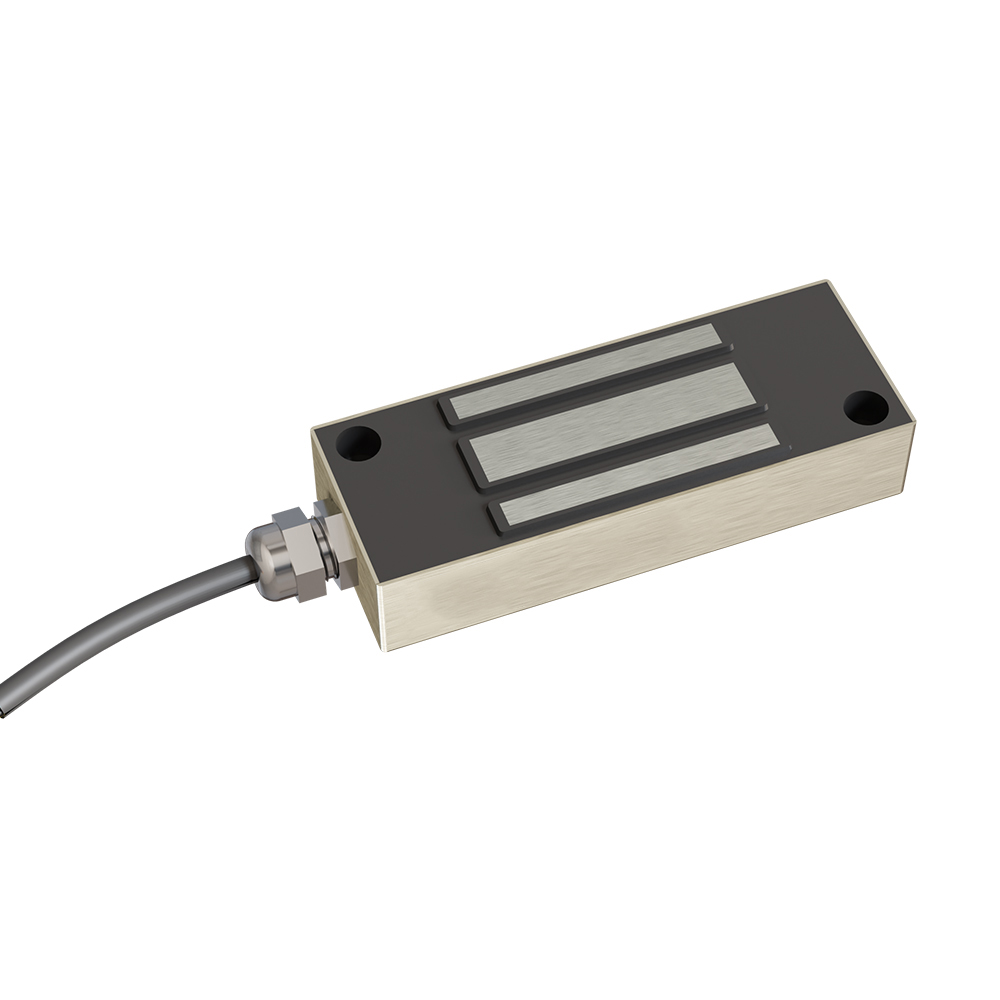

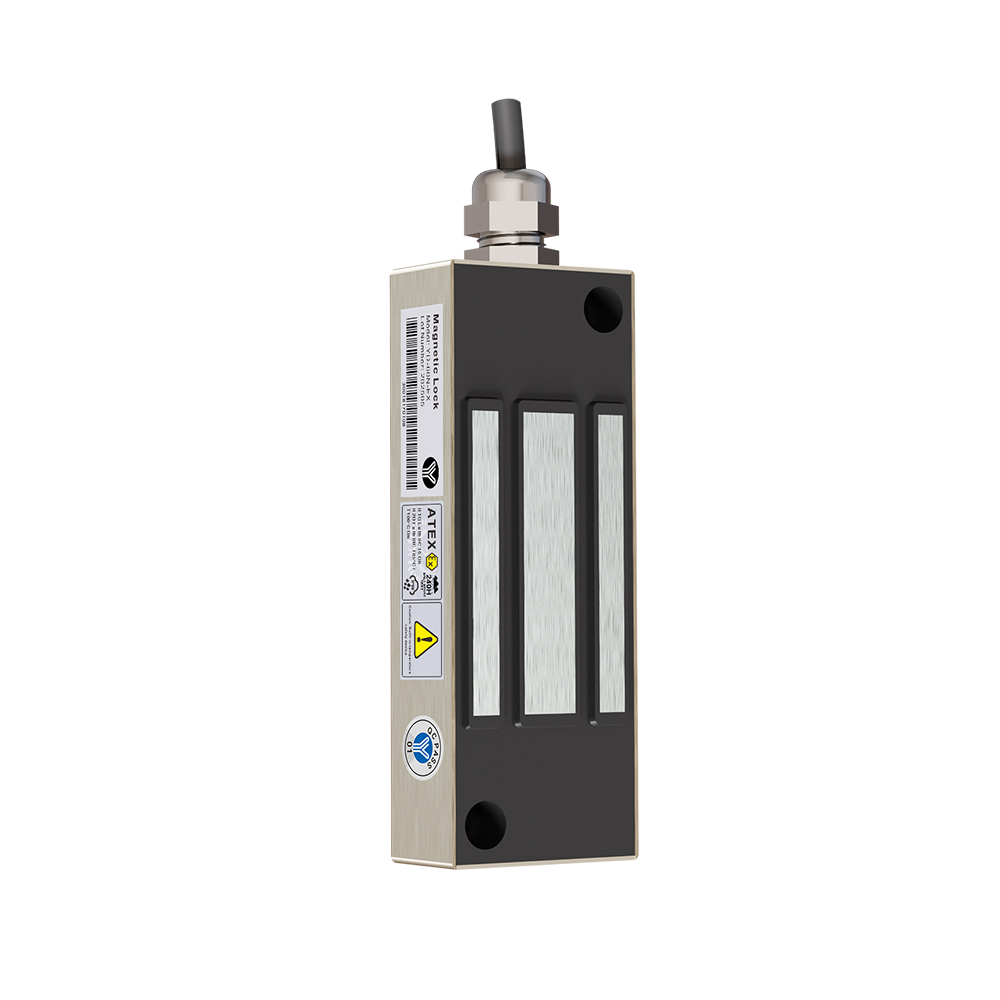

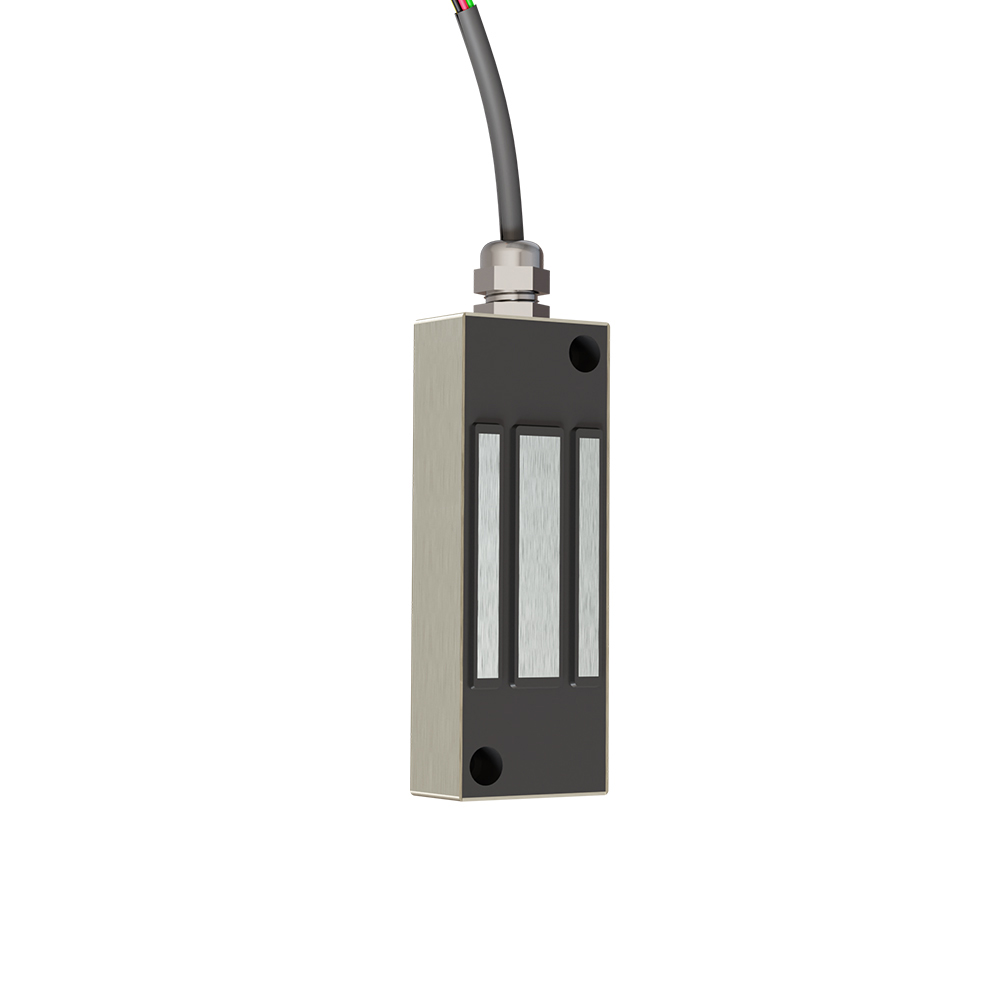

60kg Explosion-proof mini magnetic lock 120lbs (Stainless steel housing)
Model:YD-60N-EX
Explosion-proof magnetic lock is a kind of intrinsically safe electromagnetic lock that can be used in inflammable and explosive gas environment. It has simple structure, easy installation and maintenance, wear resistance, high reliability, and can be unlocked by power failure to escape in case of danger. It is especially suitable for petrochemical and other inflammable and explosive places.The explosion-proof electromagnetic lock produced by YLI are designed and manufactured in accordance with the relevant provisions of EU regulations EN IEC 60079-0:2018, IEC 60079-11:2012, EN 61241-11:2006.
Share to:
Product Parameter Parameter Description
Dimension  100Lx37Wx20H(mm)
Armature plate 75Lx33Wx10H(mm)
Voltage DC12V(Need order 24VDC)
Current 12V/160mA士10%; 24V/80mA土10%
Holding force 60kg(120Lbs)
Signal output Lock signal(NO/COM)
Suitable for  File cabinet, Display cabinet
Cover finish  Stainless steel surface texture treatment
Operating temp -10~+50℃(14-122F)
Weight 0.5kg
  Lock body with M12 x 1.5 metal cable connector
  • Holding force:60kg±10%
  • Input voltage: DC12V (Customizable 24VDC)
  • Signal output:NO,COM
  • Applicable humidity:0~95%(non-condensing)
  • Applicable: Explosive gas and dust environments
  • Anti-residual magnetism: Unlock within 0.5 seconds
  • Overvoltage test: No damage after 24 hours at 125% of the rated voltage
  • Low-voltage test: Holding force remains unchanged at 85% of the rated voltage
  • Flame-retardant lock body: Potting with flame-retardant resin (grade :V-0)
  • Strength of lock core: Enhance the structural strength by laser welding

Warranty Service will be honored if the damage is not caused by human, YLI Provides 2 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 8
Packing Size(L*W*H)(cm) 59.5*34.5*15.3
Gross Weight(KG) 20.6
